Earthquake Disaster Simulation of Civil Infrastructures:
From Tall Buildings to Urban Areas

Xinzheng Lu and Hong Guan

Springer, 2017

Preview Pages of this Book

Full Text PDF of this Book

About this book


Tall Building

Urban Area

Based on more than 12 years of systematic investigation on earthquake disaster simulation of civil infrastructures, this book covers the major research outcomes including a number of novel computational models, high performance computing methods and realistic visualization techniques for tall buildings and urban areas, with particular emphasize on collapse prevention and mitigation in extreme earthquakes, earthquake loss evaluation and seismic resilience. Typical engineering applications to several tallest buildings in the world (e.g., the 632 m tall Shanghai Tower and the 528 m tall Z15 Tower) and selected large cities in China (the Beijing Central Business District, Xi'an City, Taiyuan City and Tangshan City) are also introduced to demonstrate the advantages of the proposed computational models and techniques.

The high-fidelity computational model developed in this book has proven to be the only feasible option to date for earthquake-induced collapse simulation of supertall buildings that are higher than 500 m. More importantly, the proposed collapse simulation technique has already been successfully used in the design of some real-world supertall buildings, with significant savings of tens of thousands of tons of concrete and steel, whilst achieving a better seismic performance and safety.

The proposed novel solution for earthquake disaster simulation of urban areas using nonlinear multiple degree-of-freedom (MDOF) model and time-history analysis delivers several unique advantages: (1) true representation of the characteristic features of individual buildings and ground motions; (2) realistic visualization of earthquake scenarios, particularly dynamic shaking of buildings during earthquakes; (3) detailed prediction of seismic response and losses on each story of every building at any time period. The proposed earthquake disaster simulation technique has been successfully implemented in the seismic performance assessments and earthquake loss predictions of several central cities in China. The outcomes of the simulation as well as the feedback from the end users are encouraging, particularly for the government officials and/or administration department personnel with limited professional knowledge of earthquake engineering.

The book offers readers a systematic solution to earthquake disaster simulation of civil infrastructures. The application outcomes demonstrate a promising future of the proposed advanced techniques. The book provides a long-awaited guide for academics and graduate students involving in earthquake engineering research and teaching activities. It can also be used by structural engineers for seismic design of supertall buildings.

Preview Pages of this Book

Full Text PDF of this Book

Preface

Earthquake is a natural disaster that severely threatens the safety of people. In consequence, increasing the seismic resistance and resilience of civil infrastructures and cities through in-depth research of earthquake engineering has significant value for safeguarding life and property. Note that since the devastating Tangshan Earthquake in 1976, no severe earthquake has taken place for more than 40 years in the eastern and central cities of China. Experiences gained from previous earthquakes obviously cannot satisfy the latest development of structures and urbanizations. Considering the capacity limitations of physical testing facilities, an accurate, efficient and realistic numerical simulation of seismic damage to structures and cities is critically needed for developing rational and practical engineering solutions and mitigation strategies to reduce the impacts of earthquakes.

The authors of this monograph have systematically studied the earthquake disaster simulation of civil infrastructures for more than 12 years. The outcomes of their work are summarized in this monograph, covering the novel computational models, high performance computing methods and realistic visualization of tall buildings and urban areas, with particular emphasize on collapse prevention and mitigation in extreme earthquakes, earthquake loss evaluation and seismic resilience. Typical engineering applications to several tallest buildings in the world and selected large cities in China are also introduced to demonstrate the advantages of the proposed computational models and techniques. It should be recognized that extensive studies related to earthquake disaster simulation have been conducted by many other researchers. This monograph is intended to present the work completed by the authors and their co-workers only.

The contents covered in this monograph include the research outcomes of many important research projects sponsored by various research agencies, including: the Excellent Young Scientist Fund of the National Natural Science Foundation of China (NSFC) (No. 51222804), the Key Research Plan of NSFC (No. 90815025, 91315301), the NSFC-NSF US Major International (Regional) Joint Research Project (No. 51261120377), the General Projects of NSFC (No. 51178249, 51378299, 51578320), the National Key Technology R&D Program of the Ministry of Science and Technology (MOST) of China (No. 2006BAJ03A02, 2009BAJ28B01, 2012BAJ07B012, 2013BAJ08B02, 2014BAL05B04, 2015BAK17B03, 2015BAK14B02), the Beijing Natural Science Foundation (No. 8142024), the Program for New Century Excellent Talents in University (No. NCET-10-0528), the Fok Ying Dong Education Foundation (No. 131071), the Tsinghua University Initiative Scientific Research Program (No. 2010THZ02-1) and the National Non-Profit Institute Research Grant of IGP-CEA (No. DQJB14C01).

The work presented in this monograph is completed by the authors and their co-workers, including: Professors Lieping Ye, Aizhu Ren, Song Cen and Peng Pan of Tsinghua University, Professor Muneo Hori of the University of Tokyo, Professor Kincho H. Law of Stanford University, Dr. Xuchuan Lin of the Institute of Engineering Mechanics of China Earthquake Administration, Professors Wuhui Qi, Weibiao Yang and Wei Zhen of the Beijing Institute of Architectural Design, Dr. Yuli Huang of Arup Ltd., Professor Halil Sezen of the Ohio State University, Professor Tony Yang of the University of British Columbia, Professor Cheng Yu of the University of North Texas. Many graduate students of Tsinghua University also contributed extensively to the development, analysis and simulation work presented in this monograph. They include doctoral graduates: Drs Xunliu Wang, Zhiwei Miao, Qianli Ma, Yi Li, Zhe Qu, Zhen Xu, Xiao Lu, Wei Shi, Chen Xiong and Linlin Xie; master graduates: Wankai Zhang, Bo Han, Mengke Li, Bin Liu, Lisha Wang; and current graduate students: Xiang Zeng, Kaiqi Lin, Yuan Tian, Zhebiao Yang, Qingle Cheng, Donglian Gu. In addition, Professors Jiaru Qian, Jingbo Liu, Linhai Han, Zuozhou Zhao, Xiaodong Ji and Peng Feng of Tsinghua University also provided many valuable advices to this work. The China Academy of Building Research, the Beijing Institute of Architectural Design, the Institute of Engineering Mechanics, the Institute of Geophysics of China Earthquake Administration, Xi’an University of Architecture and Technology and the THUPDI Ltd also provided generous support to this research.

Support provided by the Key Laboratory of Civil Engineering Safety and Durability of Ministry of Education of China and the Laboratory of the Mechanical Computing and Simulation of Tsinghua University for undertaking extensive computer simulations and experimental studies is greatly acknowledged.

During the writing up stage, Drs. Xiao Lu, Zhen Xu, Linlin Xie, Chen Xiong, Mr. Kaiqi Lin, Xiang Zeng, Qingle Cheng, and Ms. Yaning Zhu helped to finalize all the figures and proofread the entire manuscript. Their contributions are also gratefully acknowledged.

Given a significant amount of research being conducted in the related areas, the work presented in this monograph is just a small contribution. There must be some limitations and errors in the contents of this monograph. Any comments and suggestions from the readers are warmly welcomed.

Authors

September, 2016

Tsinghua Campus, Beijing, China

Preview Pages of this Book

Full Text PDF of this Book



LIST OF CONTENTS

Chapter 1 Introduction

1.1 Research background

1.2 Significance and implication of earthquake disaster simulation of civil infrastructures

1.3 Research framework and contents

Chapter 2 High-fidelity computational models for earthquake disaster simulation of tall buildings

2.1 Introduction

2.2 Fiber-beam element model

2.3 Multi-layer shell model

2.4 Hysteretic hinge model

2.5 Multi-scale modeling

2.6 Element deactivation and collapse simulation

2.7 Summary

Chapter 3 High performance computing and visualization for earthquake disaster simulation of tall buildings

3.1 Introduction

3.2 GPU-based high performance matrix solvers for OpenSees

3.3 Physics engine-based high performance visualization

3.4 Summary

Chapter 4 Earthquake disaster simulation of typical supertall buildings

4.1 Introduction

4.2 Earthquake disaster simulation of the Shanghai Tower

4.3 Earthquake disaster simulation of the Z15 Tower

4.4 Summary

Chapter 5 Simplified models for earthquake disaster simulation of supertall buildings

5.1 Introduction

5.2 The flexural-shear model

5.3 The fishbone model

5.4 Summary

Chapter 6 Engineering application of earthquake disaster simulation of supertall buildings

6.1 Introduction

6.2 Ground motion intensity measure (IM) for supertall buildings

6.3 Minimum base shear force for supertall buildings

6.4 Optimal design of the Z15 Tower based on collapse analysis

6.5 Summary

Chapter 7 Comparison of seismic design and performance of tall buildings based on Chinese and US design codes

7.1 Introduction

7.2 Comparison of the seismic designs of typical tall buildings based on the Chinese and US design codes

7.3 Comparison of the structural performance of tall buildings designed based on the US and Chinese codes

7.4 Comparison of the seismic resilience of tall buildings designed based on the US and Chinese codes

7.5. Summary

Chapter 8 Nonlinear MDOF models for earthquake disaster simulation of urban buildings

8.1 Introduction

8.2 Nonlinear MDOF shear model of multi-story buildings

8.3 Nonlinear MDOF flexural-shear model of tall buildings

8.4 Summary

Chapter 9 Visualization for earthquake disaster simulation of urban buildings

9.1 Introduction

9.2 2.5D model for visualization of urban building seismic simulation

9.3 3D-GIS model for visualization of urban building seismic simulation

9.4 Physics engine-based collapse simulation of urban buildings

9.5 Summary

Chapter 10 High performance computing for earthquake disaster simulation of urban buildings

10.1 Introduction

10.2 Coarse-grain CPU/GPU collaborative parallel computing

10.3 Seismic simulation of urban buildings using distributed computing and multi-fidelity models

10.4 Summary

Chapter 11 Earthquake disaster simulation of typical urban areas

11.1 Introduction

11.2 Earthquake disaster simulation of Ludian Earthquake

11.3 Earthquake disaster simulation of Beijing CBD

11.4 Earthquake disaster simulation of a medium-sized city in China

11.5 Earthquake disaster simulation of Xi’an, Taiyuan and Tangshan Cities in China

11.6 Summary

Chapter 12 Earthquake loss prediction for typical urban areas

12.1 Introduction

12.2 Earthquake loss prediction for urban areas based on FEMA P-58 method

12.3 Secondary disaster simulation of falling debris and site selection of emergence shelters

12.4 Summary

Chapter 13 Conclusions

13.1 Major achievements and contributions

13.2 A Future perspective

Preview Pages of this Book

Full Text PDF of this Book

1 Introduction

1.1 Research background

China, being located in an earthquake-prone region, is one of the countries in the world that suffer the most from earthquake disasters (Chen et al., 1999; Jiang, 2005). Spanning over a long history, China has experienced a significant number of devastating earthquakes, resulting in enormous casualties and property losses. Past earthquake events have repeatedly proven that damage to civil infrastructures is the major contributor to earthquake disasters. Building collapses in particular are responsible for a large percentage of deaths and property losses in earthquakes. Therefore, one of the important research pursuits is to develop rational and practical engineering solutions and mitigation strategies to reduce the impacts of earthquakes, through an in-depth understanding of the mechanisms of earthquake damage to civil infrastructures.

Much progress has been made in earthquake engineering research and applications following more than 100 years of scientific endeavour. Recent earthquakes have signified that if the ground motion does not overly exceed the maximum considered intensity, building collapses and casualties can be largely prevented should the structures be engineered in strict accordance with the seismic design code specifications. Such a finding marks a notable achievement and contribution to the entire earthquake engineering community. Despite these remarkable research and application efforts, a range of new challenges are yet to be faced due to rapid societal growth and increasing complexities of earthquakes. To address these challenges, further research efforts must be made in the following areas:

(1) Seismic design of new types of structures

Many international seismic design codes and specifications are largely based on the lessons learnt from historic earthquakes. Given rapid development of civil engineering technology and randomness of earthquakes, many new types of structures are being constructed without having gathered adequate earthquake experience data. For instance, in recent years, there is a boom of supertall building construction worldwide (http://ctbuh.org/). However, most of these supertall buildings have not experienced any major earthquake. The actual safety and performance of the supertall buildings of 400 m to 600 m tall and beyond still remain unknown when they are subjected to severe earthquakes. An in-depth study is indeed urgently needed to ensure safety and robustness of the new types of structural systems.

(2) Disaster prevention and mitigation of urban areas

Advances in earthquake engineering for new structures, whilst contributing to the improvement of the community safety, are still limited to comprehensively solve earthquake disaster prevention and mitigation problems in urban areas. Using an analogous statement of “Rome wasn't built in a day”, every city has a long history in which the buildings were constructed over different periods. Many outdated buildings lack adequate seismic resistance, a problem that is particularly critical for countries like China. The underlying reason lies in the fact that a large percentage of the urban buildings were constructed well before the modern earthquake engineering design methodology was widely implemented. This situation has become the “Achilles' heel” of contemporary Chinese cities. When a powerful earthquake struck an urban area of China with a dense population, it often caused massive losses to human life and property. Although the economic and social consequences can be mitigated by rebuilding or strengthening all the non-seismic resistant buildings, this may not be easily accomplished in the near future due to a substantial financial burden imposed. Thus, an accurate prediction of the potential seismic damage to urban areas is of practical importance for effective pre-earthquake planning and post-earthquake emergency management.

(3) Earthquakes beyond the range of maximum considered earthquake

Although the understanding of earthquake risks in China has been increasingly improved owing to the latest revisions of the earthquake hazard zoning map of China, the probability of occurrence of extreme earthquakes that beyond the maximum considered earthquake must not be considered lightly in structural design due to the complicated nature of earthquakes. Critically important buildings and civil infrastructures are so functional important which are deemed “too big to fail”. How to enhance the collapse resistance of such structures subjected to extreme earthquakes remains a significant challenge when aiming for the right balance between the safety and construction costs. This requires damage control of the entire structural system in the collapse prevention design against extreme earthquakes, instead of merely designing for strength or ductility of individual components as commonly suggested by most existing design codes (Ye et al., 2010; Tang et al., 2011; Wang et al., 2010).

(4) Resilience of buildings and communities

In traditional seismic design, great emphasis has been placed on safety and collapse prevention of structures. However, lessons learnt from recent earthquakes reveal that: in addition to the damage control of structural components, loss control of non-structural components and contents in the buildings, as well as post-earthquake recovery of buildings and communities are also vastly important for disaster risk reduction. Accordingly, the seismic design concept of “resilience” has drawn increasing attention worldwide (Bruneau et al., 2003; UNDP, 2015; Cimellaro, 2016). Much in-depth work is thus required to achieve disaster-resilient buildings and communities.

1.2 Significance and implication of earthquake disaster simulation of civil infrastructures

Given the large dimensions and complicated configurations of civil infrastructures, and their likelihood to be destroyed by sudden, devastating and regional earthquakes, investigation and evaluation of earthquake damage through costly experiments face many challenges. For seismic damage assessment of an urban area, in particular, computer-based simulation has become the most feasible and efficient methodology for scientific research and engineering application.

Computer simulation of earthquake disasters covers the follow three components:

(1) Mathematical models that can reproduce the behavior of structures;

(2) Numerical methods that can provide solutions to a system of mathematical equations;

(3) Computer hardware for implementing numerical simulation.

In light of the above, earthquake disaster simulation falls within a typical multi-disciplinary field of research. From the structural engineering viewpoint, the major task is to continuously develop accurate and reliable mathematical models to mimic the actual behavior of real structures. In addition to this, efficient computer hardware and numerical solvers are also critical issues to be addressed due to excessive computational workload required for an earthquake disaster simulation of a complicated structure or a large urban area.

Numerical simulation using 3D solid elements has many advantages in reproducing the true behavior of 3D structural components. However, their application to real-world structures is both costly and impractical. For example, Yamashita et al. (2011) modeled a 129.7 m high regularly-shaped steel frame with 16 million solid elements. Such a simulation is a huge challenge even for the fastest computer in the world. For this reason, efficient computational models and numerical solvers remain attractive development goals, so does the high performance/low cost hardware platform.

It is worth noting that there always exists a major conflict between scientific research/engineering demand and the capabilities and limitations of the physical/experimental and virtual/numerical simulations. Comparing to the slow-progression of the experimental capacities, the computing power of numerical simulation has increased rapidly in the past several decades. The list of top 500 fastest computers is updating monthly, and today’s desktop computers are almost as fast as the world’s fastest super-computer some 15 years ago. Thus, current earthquake engineering research can largely benefit from full utilization of the capabilities of modern computers.

1.3 Research framework and contents

In view of the four critical challenges outlined in Section 1.1, this monograph thus focuses on earthquake disaster simulation of tall/supertall buildings and urban areas, with particular emphasize on collapse prevention and mitigation in extreme earthquakes, earthquake loss evaluation and seismic resilience. The research framework and contents of this monograph are as follows:

Earthquake disaster simulation of tall buildings is covered in Chapters 2 to 7.

Given large-scale and complicated structural systems, a computational model with balanced accuracy and efficiency is critical for earthquake disaster simulation of tall buildings. In consequence, Chapter 2 proposes a suite of high-fidelity computational models for tall building simulation (covering fiber-beam element model, multi-layer shell element model, and so forth), followed by model validation against published experimental results.

The high-fidelity computational models introduced in Chapter 2 bring new challenges to effective implementation of computer simulation and visualization. Consequently, Chapter 3 proposes graphics processing unite (GPU)-based high performance matrix solvers in conjunction with physics engine-based high performance visualization technique, with which the simulation and visualization can be greatly accelerated.

Using the above techniques, earthquake-induced collapse simulation of two real-world landmark supertall buildings, i.e., the Shanghai Tower (H = 632 m) and the Z15 Tower (H = 528 m), is presented in Chapter 4. In-depth discussions are also provided with respect to the collapse process and failure mechanisms of these supertall buildings.

Despite the improved accuracy of the high-fidelity computational models, excessive computational workload limits their application at the preliminary design phase. Therefore, simplified models are proposed in Chapter 5 which can greatly reduce the modeling and computational cost without compromising required accuracy. The simplified models can be used for preliminary design and selection of the most appropriate structural scheme for a given building.

Based on the high-fidelity computational models and simplified models, Chapter 6 discusses, in some detail, several issues pertaining to supertall buildings that have received much attention from wide engineering community. These issues include but not limited to: ground motion intensity measure and minimum based shear force for supertall buildings, and optimal design of an actual supertall building based on collapse analysis.

Discussions on tall buildings presented in Chapters 2 to 6 are primarily focused on the overall structural performance. Given increased demand on seismically resilient tall buildings, Chapter 7 details the structural performance and seismic resilience of typical tall buildings designed based on the Chinese and US codes, using the computational models developed in previous chapters and the new generation performance-based design method.

Earthquake disaster simulation of urban areas is presented in Chapters 8 to 12 of this monograph.

To overcome the limitations of existing urban building seismic simulations, Chapter 8 proposes nonlinear multiple degree-of-freedom (MDOF) models in conjunction with time-history analysis to predict seismic damage to buildings in large urban areas. The computational models and the corresponding parameter determination methods are proposed for multi-story masonry buildings, reinforced concrete frames and tall buildings.

A realistic visualization is highly important for users of urban building seismic simulation who are not professional civil engineers. With this in mind, 2.5D and 3D visualization models are proposed in Chapter 9 to enhance visualization capabilities of urban building seismic simulation. In addition, collapse simulation of urban buildings is achieved through physics engines.

Earthquake disaster simulation of an urban area based on nonlinear MDOF models or high-fidelity computational models brings more challenges to computational workload. A coarse-grain CPU/GPU collaborative parallel computing and a distributed computing framework for multi-fidelity models are therefore proposed in Chapter 10 which impressively accelerated the earthquake disaster simulation of an urban area.

Using the method proposed in Chapters 8, 9 and 10, Chapter 11 presents six typical examples of urban building seismic simulation. The number of buildings simulated is up to hundreds of thousands, demonstrating the advantages and applicability of the proposed method.

Whilst the urban building seismic simulation technique developed in Chapters 8 to 11 focuses mainly on the structural damage, Chapter 12 makes use of detailed structural responses to predict the earthquake loss of an urban area based on the new generation performance-based design method. A secondary disaster simulation of falling debris of buildings is also presented which in turn helps to select a rational and safer site for emergency shelter construction. The outcome of this simulation is expected to provide a useful reference for improving community resilience.

Last but not least, Chapter 13 summarizes the major achievements and contributions reported in this monograph, based on which the future research directions are given.

A schematic of the contents and interrelationships of various chapters are illustrated in Figure 1.1.

Figure 1.1 Contents and interrelationships of all chapters

Preview Pages of this Book

Full Text PDF of this Book

Chapter 2 High-fidelity computational models for earthquake disaster simulation of tall buildings

Example page of Chapter 2

Example page of Chapter 2 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 3 High performance computing and visualization for earthquake disaster simulation of tall buildings

Example page of Chapter 3

Example page of Chapter 3 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 4 Earthquake disaster simulation of typical supertall buildings

Example page of Chapter 4

Example page of Chapter 4 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 5 Simplified models for earthquake disaster simulation of supertall buildings

Example page of Chapter 5

Example page of Chapter 5 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 6 Engineering application of earthquake disaster simulation of supertall buildings

Example page of Chapter 6

Example page of Chapter 6 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 7 Comparison of seismic design and performance of tall buildings based on Chinese and US design codes

Example page of Chapter 7

Example page of Chapter 7 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 8 Nonlinear MDOF models for earthquake disaster simulation of urban buildings

Example page of Chapter 8

Example page of Chapter 8 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 9 Visualization for earthquake disaster simulation of urban buildings

Example page of Chapter 9

Example page of Chapter 9 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 10 High performance computing for earthquake disaster simulation of urban buildings

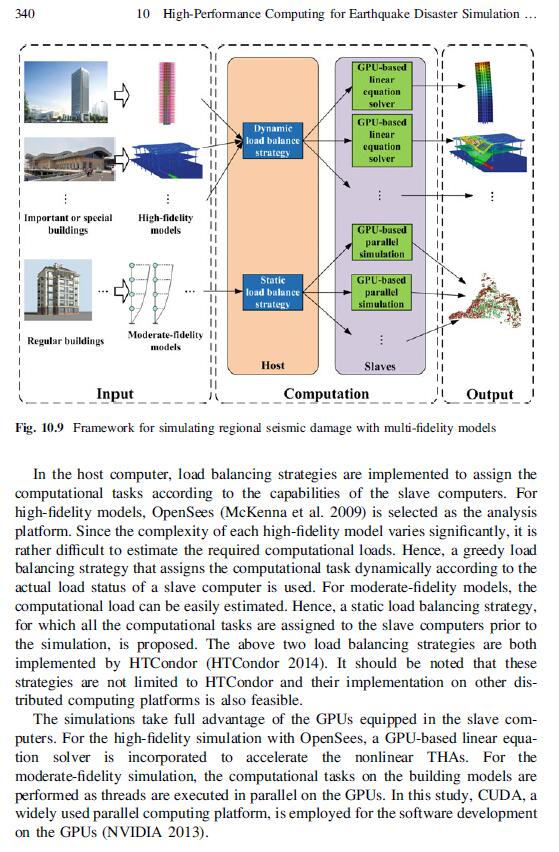

Example page of Chapter 10

Example page of Chapter 10 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 11 Earthquake disaster simulation of typical urban areas

Example page of Chapter 11

Example page of Chapter 11 (Preview Pages of this Book)

(Full Text PDF of this Book)

Chapter 12 Earthquake loss prediction for typical urban areas

Example page of Chapter 12

Example page of Chapter 12 (Preview Pages of this Book)

(Full Text PDF of this Book)

13 Conclusions

13.1 Major achievements and contributions

This monograph systematically introduced the technologies developed by the authors for earthquake disaster simulation of tall buildings and urban areas, with particular emphasize on collapse prevention and mitigation in extreme earthquakes, earthquake loss evaluation and seismic resilience.

Chapters 2 to 7 present the earthquake disaster simulation techniques for tall buildings, including the proposed high-fidelity computational models and simplified models of tall buildings, high-performance GPU-based matrix solvers, physics engine-based high performance visualization, and some typical engineering applications. Seismic safety and resilience of supertall buildings are new challenges to the earthquake engineering community. Therefore, many critical yet unknown problems are encountered by researchers and professional engineers, particularly on their seismic performances, collapse modes and the corresponding design strategies. The high-fidelity computational model proposed in this work using fiber-beam elements and multi-layer shell elements provides an efficient and reliable approach to discover the possible collapse modes and potential weak portions of the supertall buildings. This approach has also been successfully used in the design of some real-world supertall buildings (e.g., the Z15 Tower). The outcomes of the collapse simulation helped to save tens of thousands of tons of concrete and steel, whilst achieving a better seismic performance and safety of the supertall buildings. It is worth mentioning that, such a high-fidelity computational model is the only feasible option to date for collapse simulation of supertall buildings that are higher than 500 m. In addition, the simplified models proposed are able to identify the nonlinear performance of supertall buildings subjected to different levels of earthquake hazards with remarkably reduced computational workload. Furthermore, the seismic performance and resilience of typical tall buildings designed using the Chinese and US design codes are evaluated and compared. All these developments and simulation outcomes are expected to provide important references for seismic design of tall buildings and future updating of relevant seismic design codes.

Chapters 8 to 12 describe the earthquake disaster simulation of urban areas, following many of the outcomes presented in the former chapters of this monograph (e.g., the simplified models of tall buildings, GPU-based high-performance computing and resilience assessment method). A novel solution for earthquake disaster simulation of urban areas, using the proposed nonlinear multiple degree-of-freedom (MDOF) model and time-history analysis (THA) is systematically proposed, covering the nonlinear MDOF building models, parameter determination method, high-performance computing and realistic visualization. The proposed earthquake disaster simulation technique delivers several unique advantages: Firstly, it can fully represent the characteristic features of individual buildings and ground motions. In consequence, it is more suitable for urban regions having many newly constructed buildings but with limited historic earthquake experience. Secondly, it can realistically display the earthquake scenarios, particularly the dynamic shaking of buildings subjected to an earthquake. Therefore, it is widely welcomed by the government and/or administration departments whose professional knowledge of earthquake engineering are lacking. Thirdly, the entire dynamic response on each story of every building can be predicted at any time period, which provides a solid foundation for the prediction of economic loss and secondary disasters of earthquakes. Given these advantages, the proposed earthquake disaster simulation technique has been successfully implemented in the seismic performance assessments and earthquake loss predictions of several central cities of China. The outcomes of the simulation as well as the feedback from the end users are encouraging, which confirms a promising application future of the proposed simulation technique.

13.2 A Future perspective

Reitherman (2012) pointed out that there are three grant challenges in earthquake engineering: “risk, inelasticity and dynamics”. Powered by the latest computational technology, some novel solutions for earthquake disaster simulation of tall buildings and urban areas targeting these three challenges have been proposed. Note that the real-world problems are far more complicated than those discussed in this work. Therefore, much more in-depth studies into the problems faced by the scientific community are necessary to be conducted. To this end, recommendations for future research directions are given below:

(1) Uncertainty

In addition to the uncertainty of ground motions that has been discussed in this work through incremental dynamic analysis (IDA) using sufficient ground motion records, uncertainties in the design, analysis and construction of the buildings (including but not limited to the uncertainties in the design information, computational model and corresponding parameter values) can also influence the prediction outcomes (FEMA, 2009; Ellingwood & Kinali, 2009). Therefore, uncertainties in the earthquake disaster simulation of tall buildings and urban areas need to be systematically and thoroughly explored.

(2) Soil-structure interaction, city-site interaction and building-to-building interaction

The influence of the soil-structure interaction (SSI) on the seismic performance of a supertall building has been discussed in Section 4.2.4. However, the actual SSI behavior is far more complicated, especially when nonlinearity of soil is considered. The input ground motions adopted in this work are mostly generated or recorded from free fields, which may differ substantially from the actual ground motions in a dense city (i.e., city-site interaction) (Guidotti et al., 2012). In addition, neighborhood buildings may impact each other during an earthquake (i.e., building-to-building interaction), which may induce further damage. All these interaction behavior requires more attention for advanced earthquake disaster simulation.

(3) Fire following earthquake and other secondary disasters

In addition to the direct damage of earthquakes, earthquake may also induce many secondary disasters. Fire following earthquake is one of the most severe secondary disasters of an earthquake for an urban area, which may incur an even greater loss than the earthquake itself (Lee et al., 2008). The earthquake scenario simulated in this work confirms the workability of the simulation of secondary disasters (e.g., simulating the falling debris as in Section 12.3). Further studies are required to develop a comprehensive earthquake disaster simulation methodology, taking into account various secondary disasters.

(4) Virtual reality, augmented reality and cloud computing

The visualization work presented in Chapter 9 can be further enhanced through virtual reality and augmented reality. The proposed high-fidelity models of visualization have established a solid foundation for the inclusion of virtual reality and augmented reality technologies into the scenario simulation of earthquake disasters. In addition, distributed computing technologies introduced in Section 10.3 can be further extended to cloud computing to make full use of the flexible capability of cloud computing platforms (Lu et al. 2015a). Note that the infrastructure as a service (IaaS) feature of cloud computing is particularly suited for earthquake disaster simulation: huge computational demand (due to a large number of buildings need to be simulated in a restricted time window) but occasional usage (due to low frequency of occurrence of strong earthquakes).

(5) Bridges, lifelines and other civil infrastructure

This study focuses on the earthquake disaster simulation of building structures. Many other civil infrastructure systems, such as bridges, electric and water lifelines are also critical for maintaining the functionality of a city. The simulation technologies proposed in this work provides useful information to guide future development of an integrated earthquake disaster simulation system for buildings and civil infrastructures.

Preview Pages of this Book

Full Text PDF of this Book

References

(The authors of this monograph are marked in bold)

ABAQUS, (2013). ABAQUS /CAE user's manual. Dassault Systèmes, Providence, RI, USA.

ACI, (2008). Building code requirements for structural concrete ACI 318-08 and commentary 318R–08 (ACI 318-08/318R-08). American Concrete Institute, Farmington Hills, MI.

ACI, (2011). Building code requirements for structural concrete and commentary (ACI 318-11). American Concrete Institute, Farmington Hills, Michigan.

Adeli H, (2000). High-performance computing for large-scale analysis, optimization, and control. Journal of Aerospace Engineering, 13(1): 1-10.

Almufti I, Willford M, (2013). REDiTM rating system: resilience-based earthquake design initiative for the next generation of buildings, ARUP Co.

ANSYS Inc, (2013). ANSYS Workbench user's guide. ANSYS Inc., Canonsburg, PA, USA.

Antoniou S, Pinho R, (2004). Advantages and limitations of adaptive and non-adaptive force-based pushover procedures. Journal of Earthquake Engineering, 8: 497–522.

ARC, (2002). Standards for hurricane evacuation shelter selection (ARC 4496). American Red Cross, Washington, DC.

Areemit N, Montgomery M, Christopoulos C, Hasan A, (2012). Identification of the dynamic properties of a reinforced concrete coupled shear wall residential high-rise building. Canadian Journal of Civil Engineering, 39(6): 631-642.

ASCE, (2005). Minimum design loads for buildings and other structures (ASCE/SEI 7-05). American Society of Civil Engineers, Reston, VA.

ASCE, (2006). Seismic rehabilitation of existing buildings (ASCE 41-06). American Society of Civil Engineers, Reston, VA.

ASCE, (2010). Minimum design loads for buildings and other structures (ASCE/SEI 7-10). American Society of Civil Engineers, Reston, VA.

Asgarian B, Sadrinezhad A, Alanjari P, (2010). Seismic performance evaluation of steel moment resisting frames through incremental dynamic analysis. Journal of Constructional Steel Research, 66(2): 178-190.

ATC, (1996). Seismic evaluation and retrofit of existing concrete buildings (ATC-40). Applied Technology Council, Redwood City, CA.

ATC, (2010). Modeling and acceptance criteria for seismic design and analysis of tall buildings (PEER/ATC-72-1). Applied Technology Council, Redwood City, CA.

ATC, (2012). Soil-structure interaction for building structures (ATC-84). Applied Technology Council, Redwood City, CA.

Aval SBB, Saadeghvaziri MA, Golafshani AA, (2002). Comprehensive Composite inelastic fiber element for cyclic analysis of concrete-filled steel tube columns. Journal of Engineering Mechanics-ASCE, 128(4): 428-437.

Avilés J, Pérez-Rocha LE, (2003). Soil-structure interaction in yielding systems. Earthquake Engineering & Structural Dynamics, 32(11): 1749-1771.

Avşar Ö, Bayhan B, Yakut A, (2014). Effective flexural rigidities for ordinary reinforced concrete columns and beams. The Structural Design of Tall and Special Buildings, 23(6): 463-482.

Azarbakht A, Dolšek M, (2007). Prediction of the median IDA curve by employing a limited number of ground motion records. Earthquake Engineering & Structural Dynamics, 36(15): 2401–2421.

Baker JW, Cornell CA, (2005). A vector-valued ground motion intensity measure consisting of spectral acceleration and epsilon. Earthquake Engineering & Structural Dynamics, 34(10): 1193-1217.

Baker JW, Cornell CA, (2008). Vector-valued intensity measures for pulse-like near-fault ground motions. Engineering Structures, 30(4): 1048-1057.

Barnes M, Finch EL, (2008). Collada-digital asset schema release 1.5.0 specification. Khronos Group, CA, USA.

Batoz JL, Tahar MB, (1982). Evaluation of a new quadrilateral thin plate bending element. International Journal for Numerical Methods in Engineering, 18(11): 1655-1677.

Batty M, Chapman D, Evans S, Haklay M, Kueppers S, Shiode N, (2001). Visualizing the city: communicating urban design to planners and decision-makers. Centre for Advanced Spatial Analysis, University College London, London, UK.

Bazzurro P, Cornell CA, (1994a). Seismic hazard analysis of nonlinear structures. I: Methodology. Journal of Structural Engineering-ASCE, 120(11): 3320-3344.

Bazzurro P, Cornell CA, (1994b). Seismic hazard analysis of nonlinear structures. II: Applications. Journal of Structural Engineering-ASCE, 120(11): 3345-3365.

Behr RA, (1998). Seismic performance of architectural glass in mid-rise curtain wall. Journal of Architectural Engineering-ASCE 4(3): 94-98.

Belytschko T, Leviathan I, (1994). Physical stabilization of the 4-node shell element with one point quadrature. Computer Methods in Applied Mechanics and Engineering, 113(3): 321-350.

Belytschko T, Liu WK, Moran B, Elkhodary K, (2013). Nonlinear finite elements for continua and structures. John Wiley & Sons.

Bertero VV, (1977). Strength and deformation capacities of buildings under extreme environments. Structural Engineering and Structural Mechanics, 53(1): 29-79.

Biondini F, Camnasio E, Titi A, (2015). Seismic resilience of concrete structures under corrosion. Earthquake Engineering & Structural Dynamics, 44(14): 2445-2466.

Boeing A, Bräunl T, (2007). Evaluation of real-time physics simulation systems. Proc. 5th International Conference on Computer Graphics and Interactive Techniques in Australia and Southeast Asia, ACM, New York, NY, USA, 281–288.

Bozorgnia Y, Bertero VV, (2004). Earthquake engineering: from engineering seismology to performance-based engineering, Boca Raton: CRC Press.

Braga F, Manfredi V, Masi A, Salvatori A, Vona M, (2011). Performance of non-structural elements in RC buildings during the L’Aquila, 2009 Earthquake. Bulletin of Earthquake Engineering, 9: 307–324.

Bruneau M, Chang SE, Eguchi RT, Lee GC, O’Rourke TD, Reinhorn AM, Shinozuka M, Tierney K, Wallace WA, von Winterfeldt D, (2003). A framework to quantitatively assess and enhance the seismic resilience of communities, Earthquake Spectra, 19(4): 733-752.

Building Centre of Japan, (2000). The building standard law of Japan, Japan.

CABR, (2010). User guide documentation of PKPM Software: China Academy of Building Research, Beijing, China. (CABR, (2010). PKPM软件用户手册, 中国建筑科学研究院, 北京, 中国.)

Campbell S, Kwok KCS, Hitchcock PA, (2005). Dynamic characteristics and wind-induced response of two high-rise residential buildings during typhoons. Journal of Wind Engineering and Industrial Aerodynamics, 93(6): 461-482.

Cardoso RPR, Yoon JW, Valente RAF, (2006). A new approach to reduce membrane and transverse shear locking for one-point quadrature shell elements: linear formulation. International Journal for Numerical Methods in Engineering, 66(2): 214-249.

CEA, (2014). Seismic intensity map of M6.5 Ludian Earthquake in Yunnan. China Earthquake Administration
http,//www.cea.gov.cn/publish/dizhenj/464/478/20140807085249557322083/index.html, released on August 7, 2014.

CECS127:2001, (2001). Technical specification for point supported glass curtain wall (CECS127:2001). Beijing: China Plannning Press. (CECS127:2001, (2001). 点支式玻璃幕墙工程技术规程 (CECS127:2001). 北京:中国计划出版社.)

CECS160:2004, (2004). General rule for performance-based seismic design of buildings (CECS160:2004). Beijing: China Plannning Press. (CECS160:2004, (2004). 建筑工程抗震性态设计通则(试用) (CECS160:2004). 北京: 中国计划出版社.)

CECS230:2008, (2008). Specification for design of steel-concrete mixed structure of tall buildings (CECS230:2008). Beijing: China Plannning Press. (CECS230:2008, (2008). 高层建筑钢-混凝土混合结构设计规程 (CECS230:2008). 北京: 中国计划出版社.)

CECS392:2014, (2014). Code for anti-collapse design of building structures (CECS392:2014). Beijing: China Plannning Press. (CECS392:2014, (2014). 建筑结构抗倒塌设计规程 (CECS392:2014). 北京: 中国计划出版社.)

CEN, (2004). Eurocode 8: Design of structures for earthquake resistance. Part 1: General rules, seismic action and rules for buildings. Comite Europeen de Normalisation, Brussels.

Cevahir A, Nukada A, Matsuoka S, (2010). High performance conjugate gradient solver on multi-GPU clusters using hypergraph partitioning. Computer Science - Research and Development, 25(1-2): 83-91.

Chan YF, Alagappan KR, Gandhi A, Donovan C, Tewari M, Zaets SB, (2006). Disaster management following the Chi-Chi Earthquake in Taiwan. Prehospital and Disaster Medicine, 21: 196-202.

Chang SE, Shinozuka M, (2004). Measuring improvements in the disaster resilience of communities, Earthquake Spectra, 20(3): 739-755.

Che S, Boyer M, Meng J, Tarjan D, Sheaffer WJ, Skadron1 K, (2008). A performance study of general-purpose applications on graphics processors using CUDA. Journal of Parallel and Distributed Computing, 68(10): 1370-1380.

Chen Q, (2002). Static inelastic analysis of reinforced concrete coupled shear wall. Beijing: Doctoral dissertation of Tsinghua University. (陈勤, (2002). 钢筋混凝土双肢剪力墙静力弹塑性分析. 北京:清华大学博士学位论文.)

Chen R, Branum DM, Wills CJ, (2013). Annualized and scenario earthquake loss estimations for California. Earthquake Spectra, 29(4): 1183-1207.

Chen XG, Mu ZG, Zhang JB, Wang CK, Chen CH, Sun HZ, (2009). Experimental study on the seismic behavior of steel reinforced concrete columns. Journal of University of Science and Technology Beijing, 31 (12): 1516-1524 (陈小刚, 牟在根, 张举兵, 王翠坤, 陈才华, 孙慧中, (2009). 型钢混凝土柱抗震性能实验研究. 北京科技大学学报, 31 (12): 1516-1524.)

Chen Y, Cui X, Mei H, (2010). Large-scale FFT on GPU clusters. Proc. 24th ACM International Conference on Supercomputing, ACM New York, NY: 315-324.

Chen Y, Liu J, Chen QF, Chen L, Li MF, (1999). Earthquake risk analysis and seismic damage prediction, Beijing: Seismological Press. (陈颙, 刘杰, 陈棋福, 陈凌, 李闽峰, (1999). 地震危险性分析和震害预测, 北京: 地震出版社.)

Chen YT, Lu XL, (2003). Seismic behavior of coupled shear walls-experiment and theoretical analysis, Journal of Building Structures, 24(4): 25-34. (陈云涛, 吕西林, (2003). 联肢剪力墙抗震性能研究: 试验和理论分析. 建筑结构学报, 24(4): 25-34.)

Chiou B, Darragh R, Gregor N, Silva W, (2008). NGA project strong-motion database. Earthquake Spectra, 24 (1): 23-44.

Chopra AK, (1995). Dynamics of structures. Prentice-Hall, New Jersey.

Christovasilis IP, Filiatrault A, Constantinou MC, Wanitkorkul A, (2009). Incremental dynamic analysis of woodframe buildings. Earthquake Engineering & Structural Dynamics, 38(4): 477-496.

Clough RW, (1966). Effect of stiffness degradation on earthquake ductility requirements, Report No. UCB/SESM-1966/16. Berkely: UC Berkeley.

Comerio MC, (2000). The economic benefits of a disaster resistant university: Earthquake loss estimation for UC Berkeley. Institute of Urban & Regional Development, Berkeley, California, USA.

Comerio MC, Blecher HE, (2010). Estimating downtime from data on residential buildings after the Northridge and Loma Prieta Earthquakes. Earthquake Spectra, 26(4): 951-965.

Cimellaro, GP, (2016). Urban resilience for emergency response and recovery, fundamental concepts and applications. Springer International Publishing.

Cimellaro GP, Reinhorn AM, Bruneau M, (2010). Framework for analytical quantification of disaster resilience. Engineering Structures, 32: 3639-3649.

Connor JJ, Pouangare CC, (1991). Simple-model for design of framed-tube structures. Journal of Structural Engineering-ASCE, 117 (12): 3623-3644.

Cordova PP, Deierlein GG, Mehanny SSF, Cornell CA, (2001). Development of a two-parameter seismic intensity measure and probabilistic assessment procedure. The Second U.S.-Japan Workshop on Performance-based Earthquake Engineering Methodology for Reinforced Concrete Building Structures, Sapporo, Japan, 187-206.

Cornell CA, Krawinkler H, (2000). Progress and challenges in seismic performance assessment. PEER Center News, 3(2): 1-3.

CuSP Home Page, (2014). http://cusplibrary.github.io/.

CyberCity3D, (2007). CyberCity3D. http//cybercity3d.com/.

D’Ayala D, Meslem A, Vamvatsikos D, Porter K, Rossetto T, Crowley H, Silva V, (2015). Guidelines for analytical vulnerability assessment of low/mid-rise buildings, GEM Technical Report 2015-08 V1.0.0.

Davis Langdon, (2010). Program cost model for PEER tall buildings study concrete dual system structural option. Pacific Earthquake Engineering Research Center (PEER), CA.

DBJ15-92-2013, (2013). Technical specification for concrete structures of tall building (DBJ15-92-2013). Beijing: China Architecture & Building Press. (DBJ15-92-2013, (2013). 高层建筑混凝土结构技术规程(DBJ15-92-2013). 北京: 中国建筑工业出版社.)

Decò A, Bocchini P, Frangopol DM, (2013). A probabilistic approach for the prediction of seismic resilience of bridges. Earthquake Engineering & Structural Dynamics, 42(10): 1469-1487.

DGJ08-9-2003, (2003). Code for seismic design of buildings (DGJ08-9-2003). Shanghai: Tongji University Press. (DGJ08-9-2003, (2003). 建筑抗震设计规程 (DGJ08-9-2003). 上海: 同济大学出版社.)

Dietrich A, Gobbetti E, Yoon SE, (2007). Massive-model rendering techniques: a tutorial. Computer Graphics and Applications (IEEE), 27(6): 20–34.

Ding JM, Wu HL, Zhao X, (2010). Seismic performance analysis and evaluation of Shanghai Tower under maximum considered earthquake. Journal of Civil, Architectural and Environmental Engineering, 32(Sup.2): 231-233. (丁洁民, 吴宏磊, 赵昕, (2010). 上海中心大厦罕遇地震抗震性能分析与评价. 土木建筑与环境工程, 32(Sup.2): 231-233.)

Dvorkin EN, Bathe KJ, (1984). A continuum mechanics based four-node shell element for general non-linear analysis. Engineering Computations, I: 77-88.

Eads L, Miranda E, Krawinkler H, Lignos DG, (2013). An efficient method for estimating the collapse risk of structures in seismic regions. Earthquake Engineering & Structural Dynamics, 42(1): 25-41.

Elgamal A, Yan L, Yang Z, Conte JP, (2008). Three-dimensional seismic response of Humboldt Bay bridge-foundation-ground system. Journal of Structural Engineering-ASCE, 134(7): 1165-1176.

Ellidokuz H, Ucku R, Aydin U.Y, Ellidokuz E, (2005). Risk factors for death and injuries in earthquake: cross-sectional study from Afyon, Turkey. Croatian Medical Journal, 46:613-618.

Ellingwood BR, Kinali K, (2009). Quantifying and communicating uncertainty in seismic risk assessment. Structural Safety, 31(2):179-187.

Elnashai AS, Gencturk B, Kwon O, Al-Qadi IL, Hashash Y, Roesler JR, Kim SJ, Jeong S, Dukes J, Valdivia A, (2010). The Maule (Chile) Earthquake of February 27, 2010: consequence assessment and case studies, Urbana, IL.

Esmaeily A, Xiao Y, (2005). Behavior of reinforced concrete columns under variable axial loads: analysis. ACI Structural Journal, 102 (5): 736-744.

Fajfar P, Gaspersic P, (1996). The N2 method for the seismic damage analysis for RC buildings. Earthquake Engineering & Structural Dynamics, 25(1):23–67.

Fan H, Li QS, Tuan AY, Xu LH, (2009). Seismic analysis of the world's tallest building. Journal of Constructional Steel Research, 65(5): 1206-1215.

Fang L, (2009). Experimental research on seismic shear strength and seismic behavior of autoclaved fly ash brick wall. Changsha: Master dissertation of Changsha University of Science & Technology. (方亮, (2009). 蒸压粉煤灰砖墙抗震抗剪强度及抗震性能实验研究. 长沙: 长沙理工大学硕士学位论文.)

Farber R, (2011). CUDA application design and development. San Francisco: Morgan Kaufmann.

FEMA, (1997a). NEHRP Guidelines for the seismic rehabilitation of buildings (FEMA 273). Federal Emergency Management Agency, Washington, DC.

FEMA, (1997b). NEHRP Commentary on the guidelines for the seismic rehabilitation of buildings (FEMA 274). Federal Emergency Management Agency, Washington, DC.

FEMA, (1997c). Earthquake loss estimation methodology - HAZUS97. Technical manual. Federal Emergency Management Agency – National Institute of Building Sciences. Washington, DC.

FEMA, (1999). Earthquake loss estimation methodology - HAZUS99, Technical manual, Federal Emergency Management Agency, Washington, DC.

FEMA, (2000). Prestandard and commentary for the seismic rehabilitation of buildings (FEMA 356). Federal Emergency Management Agency, Washington, DC.

FEMA, (2006). Next-generation performance-based seismic design guidelines program plan for new and existing buildings (FEMA 445). Federal Emergency Management Agency, Washington, DC.

FEMA, (2008a). Casualty consequence function and building population model development (FEMA P-58/BD-3.7.8.). Federal Emergency Management Agency, Washington, DC.

FEMA, (2008b). Design and construction guidance for community safe rooms (FEMA P-361). Federal Emergency Management Agency, Washington, DC.

FEMA, (2009). Quantification of building seismic performance factors (FEMA-P695). Federal Emergency Management Agency, Washington DC.

FEMA, (2012a). Seismic performance assessment of buildings: Volume 1 – Methodology (FEMA P-58-1). Federal Emergency Management Agency, Washington, DC.

FEMA, (2012b). Seismic performance assessment of buildings: Volume 2 - Implementation guide (FEMA P-58-2). Federal Emergency Management Agency, Washington, DC.

FEMA, (2012c). Multi-hazard loss estimation methodology - earthquake model technical manual (HAZUS-MH 2.1). Federal Emergency Management Agency, Washington, DC.

FEMA, (2012d). Multi-hazard loss estimation methodology HAZUS–MH 2.1 Advanced Engineering Building Module (AEBM) technical and user’s manual. Federal Emergency Management Agency, Washington, DC.

Ferracuti B, Pinho R, Savoia M, Francia R, (2009). Verification of displacement-based adaptive pushover through multi-ground motion incremental dynamic analyses. Engineering Structures, 31(8): 1789-1799.

Förstner W, (1999). 3D-city models automatic and semiautomatic acquisition methods. D. Fritsch, R. Spiller (Eds.), Photogrammetric Week 99, Wichmann Verlag: 291-303.

Fu CH, (2012). A study on long-period acceleration response spectrum of ground motion affected by basin structure of Beijing. Beijing: Doctoral dissertation of the Institute of Geophysics, China Earthquake Administration. (付长华, (2012). 北京盆地结构对长周期地震动加速度反应谱的影响. 北京: 中国地震局地球物理研究所博士学位论文.)

Game Physics Simulation, (2012). Bullet physics library. http://www.bulletphysics.com.

Gao YQ, Liu WF, (2012). Statistical analysis of fundamental periods of frame-shear wall structures. Applied Mechanics and Materials, 174-177: 2071-2078.

GB/T24335-2009, (2009). Classification of earthquake damage to buildings and special structures (GB/T24335-2009). Beijing: Standards Press of China. (GB/T24335-2009, (2009). ()筑物地震破坏等级划分(GB/T 24335-2009). 北京: 中国标准出版社.)

GB21734-2008, (2008). Emergency shelter for earthquake disasters-site and its facilities (GB21734-2008). Beijing: Standards Press of China. (GB21734-2008, (2008). 地震应急避难场所场址及配套设施 (GB21734-2008). 北京: 中国标准出版社.)

GB50009-2012, (2012). Load code for the design of building structures. Beijing: China Architecture & Building Press. (GB50009-2012, (2012). 建筑结构荷载规范 (GB 50009-2012). 北京: 中国建筑工业出版社.)

GB50010-2010, (2010). Code for design of concrete structures (GB50010-2010). Beijing: China Architecture and Building Press. (GB50010-2010, (2010). 混凝土结构设计规范(GB50010-2010). 北京: 中国建筑工业出版社.)

GB50011-2001, (2001). Code for seismic design of buildings (GB50011-2001). Beijing: China Architecture and Building Press. (GB50011-2001, (2001). 建筑抗震设计规范 (GB50011-2001). 北京: 中国建筑工业出版社.)

GB50011-2010, (2010). Code for seismic design of buildings (GB50011-2010). Beijing: China Architecture & Building Press. (GB50011-2010, (2010). 建筑抗震设计规范(GB50011-2010). 北京: 中国建筑工业出版社.)

GB50017-2003, (2003). Code for design of steel structures (GB50017-2003). Beijing: China Plannning Press. (GB50017-2003, (2003). 钢结构设计规范 (GB50017-2003). 北京: 中国计划出版社.)

GB50413-2007, (2007). Standard for urban planning on earthquake resistance and hazardous prevention (GB50413-2007). Beijing: China Architecture and Building Press. (GB50413-2007, (2007). 城市抗震防灾规划标准 (GB50413-2007). 北京: 中国建筑工业出版社.)

GB51143-2015, (2015). Code for design of disasters mitigation emergency congregate shelter. Beijing: China Architecture and Building Press. (GB 51143-2015, (2015). 防灾避难场所设计规范(GB 51143-2015). 北京: 中国建筑工业出版社.)

Ghobarah A, (2001). Performance-based design in earthquake engineering: state of development. Engineering Structures, 23(8): 878-884.

Gianluigi C, Raimondo S, (2006). An innovative algorithm for key frame extraction in video summarization. Journal of Real-Time Image Processing, 1(1): 69–88.

Gilles D, McClure G, (2012). Measured natural periods of concrete shear wall buildings: insights for the design of Canadian buildings. Canadian Journal of Civil Engineering, 39(8): 867-877.

Gokhale M, Cohen J, Yoo A, Miller WM, Jacob A, Ulmer C, (2008). Hardware technologies for high-performance data-intensive computing. Computer, 41(4): 60–68.

Gong YN, (2008). Experimental study on seismic behavior of concrete perforated brick walls. Zhengzhou: Master dissertation of Zhengzhou University. (巩耀娜, (2008). 混凝土多孔砖墙体抗震性能试验研究. 郑州: 郑州大学硕士学位论文.)

Goulet CA, Haselton CB, Mitrani-Reiser J, Beck JL, Deierlein GG, Porter KA, Stewart JP, (2007). Evaluation of the seismic performance of a code-conforming reinforced-concrete frame building—from seismic hazard to collapse safety and economic losses. Earthquake Engineering & Structural Dynamics, 36: 1973–1997.

Gu XL, Chen GL, Ma JY, Li X, (2010). Experimental study on mechanical behavior of concrete perforated brick walls under cyclic loading. Journal of Building Structures, 31(12): 123-131. (顾祥林, 陈贡联, 马俊元, 李翔, (2010). 反复荷载作用下混凝土多孔砖墙体受力性能试验研究. 建筑结构学报, 31(12): 123-131.)

Guan N, (2012). Comparision of load combination between Chinese and American standards. Engineering Journal of Wuhan University, 45(S1): 343-346. (管娜, (2012). 中美规范荷载组合对比. 武汉大学学报: 工学版, 45(S1): 343-346.)

Guha-Sapir D, Vos F, Below R, Ponserre S, (2011). Annual disaster statistical review 2010: the numbers and trends. Centre for Research on the Epidemiology of Disasters (CRED). Brussels, Belgium.

Guidotti R, Mazzieri I, Stupazzini M, Dagna P, (2012). 3D numerical simulation of the site-city interaction during the 22 February 2011 MW 6.2 Christchurch Earthquake. Proc. 15th World Conference on Earthquake Engineering, Lisbon, Portugal.

Guo ZG, Wu CW, Sun WM, Ni TY, (2014). Seismic behavior of recycled concrete perforated brick masonry. Journal of Basic Science and Engineering: 22(3): 539-547. (郭樟根, 吴灿炜, 孙伟民, 倪天宇, (2014). 再生混凝土多孔砖墙体抗震性能试验. 应用基础与工程科学学报: 22(3): 539-547.)

Hajjar JF, Gourley BC, (1996). Representation of concrete-filled steel tube cross-section strength. Journal of Structural Engineering-ASCE, 122(11): 1327-1336.

Hamada M, Aydan O, Sakamoto A, (2007). A quick report on Noto Peninsula Earthquake on March 25, 2007. Japan Society of Civil Engineers Report, Tokyo.

Hamburger R, Rojahn C, Moehle J, Bachman R, Comartin C, Whittaker A, (2004). The ATC-58 Project: Development of next-generation performance-based earthquake engineering design criteria for buildings, Proc. 13th World Conference on Earthquake Engineering, Vancouver, B.C., Canada, August 1-6, 2004, Paper No. 1819.

Han C, (2009). Experimental research on the behavior of brick masonry column and the seismic behavior of autoclaved fly ash brick masonry walls. Xi'an: Master dissertation of Xi'an University of Architecture and Technology. (韩春, (2009). 蒸压粉煤灰砖柱与墙体抗震性能的试验研究. 西安: 西安建筑科技大学硕士学位论文.)

Han LH, (2007). Concrete-filled steel tubular structures: theory and practice. Beijing: Science Press. (韩林海, (2007). 钢管混凝土结构. 北京: 科学出版社.)

Han LH, Zhao XL, Tao Z, (2001). Tests and mechanics model of concrete-filled SHS stub columns, columns and beam-columns. Steel & Composite Structures, 1(1): 51–74.

Hanna SR, Brown MJ, Camelli FE, Chan ST, Coirier WJ, Hansen OR, (2006). Detailed simulations of atmospheric flow and dispersion in downtown Manhattan: an application of five computational fluid dynamics models. Bulletin of the American Meteorological Society, 87(12): 1713-1726.

Havok, (2012). Havok physics. http://www.havok.com/products/physics.

Hoenderkamp JCD, (2002). Simplified analysis of asymmetric high-rise structures with cores. The Structural Design of Tall Buildings, 11 (2): 93-107.

Hori M, (2006). Introduction to computational earthquake engineering. Imperial College Press, London.

Hori M, (2011). Introduction to computational earthquake engineering, 2nd ed. London: Imperial College Press.

Hori M, Ichimura T, (2008). Current state of integrated earthquake simulation for earthquake hazard and disaster. Journal of Seismology, 12(2): 307-321.

HTCondor, (2014). Computing with HTCondor. http://research.cs.wisc.edu/htcondor/.

Huang KS, Chang CF, Hsu YY, Yang SN, (2005). Key probe: a technique for animation keyframe extraction. The Visual Computer, 21(8–10): 532–541.

Huang YH, Wang QF, (2009). Research on shear capacity for brick masonry strengthened by FRP. Journal of Architecture and Civil Engineering, 26(1): 12-18. (黄奕辉, 王全凤, (2009). FRP 加固砖砌体的抗剪承载力研究. 建筑科学与工程学报, 26(1): 12-18.)

Huang YL, (2009). Simulating the inelastic seismic behavior of steel braced frames including the effects of low-cycle fatigue. Doctoral dissertation of the University of California, Berkeley, CA.

Humphrey JR, Price DK, Spagnoli KE, Paolini AL, Kelmelis EJ, (2010). CULA: hybrid GPU accelerated linear algebra routines, SPIE Defense, Security, and Sensing. International Society for Optics and Photonics: 770502-770502-7.

Hung HC, Chen LC, (2007). The application of seismic risk-benefit analysis to land use planning in Taipei City. Disasters, 31(3): 256-276.

Hung SL, Adeli H, (1994). A parallel genetic/neural network learning algorithm for MIMD shared memory machines. Neural Networks, IEEE Transactions on, 5(6): 900-909.

Ibarra LF, Krawinkler H, (2005). Global collapse of frame structures under seismic excitations. Pacific Earthquake Engineering Research Center (PEER), CA.

ICC, (2006). International building code. International Code Council, Falls Church, Virginia.

ICC, (2009). International building code, International Code Council, Country Club Hills, IL.

ICC, (2012). International building code, International Code Council, Country Club Hills, IL.

Iervolino I, Cornell CA, (2005). Record selection for nonlinear seismic analysis of structures. Earthquake Spectra, 21: 685–713.

Iervolino I, Galasso C, Cosenza E, (2010). REXEL: computer aided record selection for code-based seismic structural analysis. Bulletin of Earthquake Engineering, 8: 339-362.

Iervolino I, Manfredi G, Cosenza E, (2006). Ground motion duration effects on nonlinear seismic response. Earthquake Engineering & Structural Dynamics, 35: 21-38.

Jacques CC, Mcintosh J, Giovinazzi S, Kirsch TD, Wilson T, Mitrani-Reise J, (2014). Resilience of the Canterbury hospital system to the 2011 Christchurch Earthquake. Earthquake Spectra, 30(1): 533-554.

Jain AK, (2010). Data clustering: 50 years beyond K-means. Pattern Recognition Letters, 31(8): 651–666.

Jarernprasert S, Bazan-Zurita E, Bielak J, (2013). Seismic soil-structure interaction response of inelastic structures. Soil Dynamics and Earthquake Engineering, 47: 132-14.

JGJ102-2003, (2003). Technical code for glass curtain walls engineering (JGJ102-2003). Beijing: China Architecture & Building Press. (JGJ102-2003, (2003). 玻璃幕墙工程技术规范 (JGJ102-2003). 北京: 中国建筑工业出版社.)

JGJ133-2001, (2001). Technical code for metal and stone curtain walls engineering (JGJ133-2001). Beijing: China Architecture & Building Press. (JGJ133-2001, (2001). 金属与石材幕墙工程技术规范 (JGJ133-2001). 北京: 中国建筑工业出版社.)

JGJ3-2010, (2011). Technical specification for concrete structures of tall building (JGJ3-2010). Beijing: China Architecture & Building Press. (JGJ3-2010, (2011). 高层建筑混凝土结构技术规程(JGJ3-2010). 北京: 中国建筑工业出版社.)

Jia P, Du XL, Zhao J, (2009). Seismic behavior of reinforced concrete core wall under different axial load ratio. Journal of Beijing University of Technology, 35 (1): 63-69. (贾鹏, 杜修力, 赵均, (2009). 不同轴压比钢筋混凝土核心筒抗震性能. 北京工业大学学报, 35 (1): 63-69.)

Jiang HJ, He LS, Lu XL, Ding JM, Zhao X, (2011). Analysis of seismic performance and shaking table tests of the Shanghai Tower. Journal of Building Structures, 32(11): 55-63. (蒋欢军, 和留生, 吕西林, 丁洁民, 赵昕, (2011). 上海中心大厦抗震性能分析和振动台试验研究. 建筑结构学报, 32(11): 55-63.)

Jiang JJ, (2005). Disaster prevention and mitigation engineering, Beijing: China Machine Press. (江见鲸, (2005). 防灾减灾工程学,北京:机械工业出版社.)

Jiang JJ, Lu XZ, Ye LP, (2005). Finite element analysis of concrete structures, Beijing: Tsinghua University Press. (江见鲸, 陆新征, 叶列平, (2005). 混凝土结构有限元分析. 北京: 清华大学出版社.)

Jiang XL, Li BQ, Lao HY, (2013). Seismic response analysis of pile-soil-structure of the Shanghai Tower's Miranda model. Earthquake Resistant Engineering and Retrofitting, 35(4): 42-47. (姜忻良, 李博强, 老浩寅, (2013). 上海中心大厦桩-土-结构Miranda模型的地震反应分析. 工程抗震与加固改造, 35(4): 42-47.)

Johnson C, (2004). Top scientific visualization research problems. Computer Graphics and Applications (IEEE), 24(4): 13–17.

Johnston D, Standring S, Ronan K, Lindell M, Wilson T, Cousins J, et al. (2014). The 2010/2011 Canterbury earthquakes: context and cause of injury. Natural Hazards, 73(2): 627–637.

Joselli M, Clua E, Montenegro A, Conci A, Pagliosa P, (2008). A new physics engine with automatic process distribution between CPU-GPU. Proc. 2008 ACM SIGGRAPH symposium on Video games, ACM, New York, 149–156.

Kaisera A, Holden C, Beavan J, Beetham D, Benites R, Celentano A, et al., (2012). The Mw 6.2 Christchurch Earthquake of February 2011: preliminary report. New Zealand Journal of Geology and Geophysics, 55(1): 67-90.

Katsanos EI, Sextos AG, Manolis GD, (2010). Selection of earthquake ground motion records: a state-of-the-art review from a structural engineering perspective. Soil Dynamics and Earthquake Engineering, 30: 157–169.

Khaleel GI, Shaaban IG, Elsayedand KM, Makhlouf MH, (2013). Strengthening of reinforced concrete slab-column connection subjected to punching shear with FRP systems. International Journal of Engineering and Technology, 5(6): 657-661.

Kircher CA, (2003). It makes dollars and sense to improve nonstructural system performance. Proc. ATC 29-2 Seminar on Seismic Design, Performance, and Retrofit of Nonstructural Components in Critical Facilities, Newport Beach, CA, USA, October 23-24.

Kircher CA, Whitman RV, Holmes WT, (2006). Hazus earthquake loss estimation methods. Natural Hazards Review, 7(2): 45-59.

Krawinkler H, Medina R, Alavi B, (2003). Seismic drift and ductility demands and their dependence on ground motions. Engineering Structures, 25(5): 637-653.

Kuang JS, Huang K, (2011). Simplified multi-degree-of-freedom model for estimation of seismic response of regular wall-frame structures. The Structural Design of Tall and Special Buildings, 20(3): 418-432

Lagomarsino S, (1993). Forecast models for damping and vibration periods of buildings. Journal of Wind Engineering and Industrial Aerodynamics, 48(2-3): 221-239.

Lam WY, Su RKL, Pam HJ, (2005). Experimental study on embedded steel plate composite coupling beams. Journal of Structural Engineering-ASCE, 131(8): 1294-1302.

Lan W, Ma J, Li B, (2015). Seismic performance of steel-concrete composite structural walls with internal bracings. Journal of Constructional Steel Research, 110: 76-89.

LATBSDC, (2008). An alternative procedure for seismic analysis and design of tall buildings located in the Los Angeles region, Los Angeles Tall Buildings Structural Design Council, Los Angeles, CA.

LATBSDC, (2011). An alternative procedure for seismic analysis and design of tall buildings located in the Los Angeles region (2011 edition including 2013 supplement). Los Angeles Tall Buildings Structural Design Council, Los Angeles, CA.

Lee T, (2007). TinyXML. http//www.grinninglizard.com/tinyxml/.

Lee S, Davidson R, Ohnishi N, Scawthorn C, (2008). Fire following earthquake—reviewing the state-of-the-art of modeling. Earthquake Spectra, 24(4): 933-967.

Légeron F, Paultre P, (2003). Uniaxial confinement model for normal and high-strength concrete columns. Journal of Structural Engineering-ASCE, 129 (2): 241-252.

Légeron F, Paultre P, Mazar J, (2005). Damage mechanics modeling of nonlinear seismic behavior of concrete structures, Journal of Structural Engineering-ASCE, 131(6): 946~954.

Lei M, (2013). Study on seismic behavior of row lock wall and row lock wall strengthened with HPFL. Changsha: Doctoral dissertation of Hunan University. (雷敏, (2013). 空斗墙及HPFL加固空斗墙的抗震性能研究. 长沙: 湖南大学博士学位论文.)

Li BD, Wang XX, (2009). Experimental research on aseismatic performance of concrete common brick wall. Journal of Wuhan University of Technology, 31(16): 72-76. (李保德, 王兴肖, (2009). 混凝土普通砖素墙片抗震性能实验研究. 武汉理工大学学报, 31(16): 72-76.)

Li GQ, (2006). R-μ principle in seismic design and overstrength character analysis of typical reinforced concrete frame structures. Chongqing: Master dissertation of Chongqing University. (李刚强, (2006). 抗震设计的 R-μ 基本准则及钢筋混凝土典型RC框架结构超强特征分析. 重庆: 重庆大学硕士学位论文.)

Li HT, Zhang FQ, (2003). Approaches to computing natural vibration period of tall building. Journal of Heibei Institute of Architectural Engineering, 21(1): 67-68. (李海涛, 张富强, (2003). 高层建筑结构自振周期的计算方法探讨. 河北建筑工程学院学报, 21(1): 67-68.)

Li J, (2003). Experimental investigation and theoretical analysis on seismic behavior of FS confined concrete columns. Beijing: Doctoral dissertation of Tsinghua University. (李静, (2003). 矩形截面FS约束混凝土柱抗震性能的试验研究与理论分析. 北京: 清华大学博士学位论文.)

Li J, Wang ZY, (2008). Experimental research on uniaxial stress-strain relationship of super high strength concrete. Concrete, 10: 11-14. (李俊, 王震宇, (2008). 超高强混凝土单轴受压应力-应变关系的试验研究. 混凝土, 10: 11-14.)

Li L, (2013). Overstrength character and its influencing factors research of reinforced concrete frame structures. Guangzhou: Master dissertation of South China University of Technology. (李伦, (2013). 钢筋混凝土RC框架结构超强特征及其影响因素研究. 广州: 华南理工大学硕士学位论文.)

Li MK, Lu X, Lu XZ, Ye LP. (2014). Influence of soil-structure interaction on seismic collapse resistance of super-tall buildings. Journal of Rock Mechanics and Geotechnical Engineering, 6(5): 477-485.

Li Y, Lu XZ, Guan H, Ye LP, (2011). An improved tie force method for progressive collapse resistance design of reinforced concrete frame structures. Engineering Structures, 33(10): 2931–2942.

Liel AB, Haselton CB, Deierlein GG, (2011). Seismic collapse safety of reinforced concrete buildings. II: comparative assessment of nonductile and ductile moment frames. Journal of Structural Engineering-ASCE, 137 (4): 492-502.

Lin SB , Xie LL, Gong MS, Li M, (2010a). Performance-based methodology for assessing seismic vulnerability and capacity of buildings. Earthquake Engineering and Engineering Vibration, 9(2): 157-165.

Lin XC, Lu XZ, Ye LP, (2010b). Multi-scale finite element modeling and its application in the analysis of a steel-concrete hybrid frame. Chinese Journal of Computational Mechanics, 27(3): 469-475. (林旭川, 陆新征, 叶列平, (2010). -混凝土混合框架结构多尺度分析及其建模方法. 计算力学学报, 27(3): 469-475.)

Lin XC, Zhang HY, Chen HF, Chen H, Lin JQ, (2015). Field investigation on severely damaged aseismic buildings in 2014 Ludian Earthquake. Earthquake Engineering and Engineering Vibration, 14(1): 169-176.

Liu LH, (2006). Preliminary analysis of R-µ relationships of MDOF and influence of the degree of statical indeterminacy on overstrength. Chongqing: Master dissertation of Chongqing University. (刘兰花, (2006). 多自由度体系 R-μ 规律初步分析及超静定次数对结构超强的影响. 重庆: 重庆大学硕士学位论文.)

Liu Y, Xu YF, Zhang H, (2011). Experimental study on mechanical behaviors of fly ash block walls restricted by constructional columns and top-beam. Industrial Construction, 41(8): 38-41. (刘雁, 徐远飞, 张宏, (2011). 约束梁柱粉煤灰砌块墙受力性能的试验研究. 工业建筑, 41(8): 38-41.)

Loo YC, Guan H, (1997). Cracking and punching shear failure analysis of RC flat plates. Journal of Structural Engineering-ASCE, 123(10): 1321-1330.

Løland KE, (1980). Continuous damage model for load-response estimation of concrete. Cement and Concrete Research, 10(3): 395-402.

Lu X, Lu XZ, Guan H, Xie LL, (2016a). Application of earthquake-induced collapse analysis in design optimization of a super-tall building, The Structural Design of Tall and Special Buildings, DOI: 10.1002/tal.1291.

Lu X, Lu XZ, Guan H, Ye LP, (2013a). Collapse simulation of reinforced concrete high-rise building induced by extreme earthquakes. Earthquake Engineering & Structural Dynamics, 42(5): 705-723.

Lu X, Lu XZ, Guan H, Ye LP, (2013b). Comparison and selection of ground motion intensity measures for seismic design of super high-rise buildings. Advances in Structural Engineering, 16(7): 1249-1262.

Lu X, Lu XZ, Sezen H, Ye LP, (2014a). Development of a simplified model and seismic energy dissipation in a super-tall building. Engineering Structures, 67:109-122

Lu X, Lu XZ, Ye LP, Li MK, (2014b). Influence of minimum base shear force on the collapse resistance of super-tall buildings. Proc. 10th National Conference in Earthquake Engineering, Earthquake Engineering Research Institute, Anchorage, AK, July, 2014.

Lu X, Lu XZ, Zhang WK, Ye LP, (2011). Collapse simulation of a super high-rise building subjected to extremely strong earthquakes. Science China Technological Sciences, 54(10): 2549-2560.

Lu X, Ye L, Lu XZ, Li MK, Ma XW, (2013c). An improved ground motion intensity measure for super high-rise buildings. Science China Technological Sciences, 56(6): 1525-1533.

Lu XL, Chen YQ, Chen B, Huang W, Zhao L, (2000). Shaking table testing of dynamic soil-structure interaction system. Earthquake Engineering and Engineering Vibration, 20(4): 20-29. (吕西林, 陈跃庆, 陈波, 黄炜, 赵凌, (2000). 结构-地基动力相互作用体系振动台模型试验研究. 地震工程与工程振动, 20(4): 20-29.)

Lu XZ, Chen L, Zeng X, Lu WQ, (2015a). Numerical simulation for seismic responses of engineering structures based on cloud computing. Journal of Shenyang Jianzhu University (Natural Science), 31(5): 769-777. (陆新征, 陈磊, 曾翔, 吕晚晴, (2015a). 基于云计算的工程结构地震响应数值模拟. 沈阳建筑大学学报 (自然科学版), 31(5): 769-777.)

Lu XZ, Han B, Hori M, Xiong C, Xu Z, (2014c). A coarse-grained parallel approach for seismic damage simulations of urban areas based on refined models and GPU/CPU cooperative computing. Advances in Engineering Software, 70: 90-103.

Lu XZ, Li MK, Guan H, Lu X, Ye LP, (2015b). A comparative case study on seismic design of tall RC frame-core tube structures in China and USA. The Structural Design of Tall and Special Buildings, 24: 687-702.

Lu XZ, Lin XC, Tian Y, Ye LP, (2014d). Comparision and discussion on destructive power of the ground motions recorded in the hardest-hit regions of Wenchuan, Lushan and Ludian earthquakes. Engineering Mechanics, 31(10): 1-7. (陆新征, 林旭川, 田源, 叶列平, (2014). 汶川、芦山、鲁甸地震极震区地面运动破坏力对比及其思考. 工程力学, 31(10): 1-7.)

Lu XZ, Lin XC, Ye LP, (2008). Multiscale finite element modeling and its application in structural analysis. Journal of Huazhong University of Science and Technology (Urban Science Edition), 25(4): 76-80. (陆新征, 林旭川, 叶列平, (2008). 多尺度有限元建模方法及其应用. 华中科技大学学报 (城市科学版), 25(4): 76-80.)

Lu XZ, Lu X, Guan H, Zhang WK, Ye LP, (2013d). Earthquake-induced collapse simulation of a super-tall mega-braced frame-core tube building. Journal of Constructional Steel Research, 82: 59-71.

Lu XZ, Tian Y, Cen S, Guan H, Xie LL, Wang LS, (2016b). A high-performance quadrilateral flat shell element for seismic collapse simulation of tall buildings and its implementation in OpenSees, under review.

Lu XZ, Xie LL, Guan H, Huang YL, Lu X, (2015c). A shear wall element for nonlinear seismic analysis of super-tall buildings using OpenSees. Finite Elements in Analysis & Design, 98: 14-25.

Lu XZ, Xie LL, Yu C, Lu X, (2016c). Development and application of a simplified model for the design of a super-tall mega-braced frame-core tube building. Engineering Structures, 110: 116-126.

Lu XZ, Ye LP, Ma YH, Tang DY, (2012). Lessons from the collapse of typical RC frames in Xuankou School during the great Wenchuan Earthquake. Advances in Structural Engineering, 15(1): 139-154.

Lu XZ, Ye LP, Miao ZW, (2009). Elasto-plastic analysis of buildings against earathquake. Beijing: China Architecture & Building Press. (陆新征, 叶列平, 缪志伟, (2009). 建筑抗震弹塑性分析. 北京: 中国建筑工业出版社.)

Lucchini A, Mollaioli F, Monti G, (2011). Intensity measures for response prediction of a torsional building subjected to bi-directional earthquake ground motion. Bulletin of Earthquake Engineering, 9(5): 1499-1518.

Luco JE, De Barros FC, (1998). Control of the seismic response of a composite tall building modelled by two interconnected shear beams. Earthquake Engineering & Structural Dynamics, 27 (3): 205-223

Luco N, Cornell CA, (2007). Structure-specific scalar intensity measures for near-source and ordinary earthquake motions. Earthquake Spectra, 23(2): 357- 391.

Luo KH, Wang YY, (2006). Research on conversion relationships among the parameters of ground motions in seismic design codes of China, America and Europe. Building Structure, 36(8): 103-107. (罗开海, 王亚勇, (2006). 中美欧抗震设计规范地震动参数换算关系的研究. 建筑结构, 36(8): 103-107.)

Luo KH, Wang YY, (2012). Researches about the conversion relationships among the parameters of ground motions in the seismic design codes of China, America and Europe. Proc. 15th World Conference on Earthquake Engineering, Lisbon, Portugal.

Lynn A, Moehle JP, Mahin SA, Holmes WT, (1996). Seismic evaluation of existing reinforced concrete building columns. Earthquake Spectra, 12(4): 715-739.

Ma HY, Xie LL, (2002). Determination of frequently occurred and seldomly occurred earthquakes in consideration of earthquake environment. Journal of Building Structures, 23(1): 43-47. (马玉宏, 谢礼立, (2002). 考虑地震环境的设计常遇地震和罕遇地震的确定. 建筑结构学报, 23(1): 43-47.)

Maciel A, Halic T, Lu Z, Nedel LP, De S, (2009). Using the PhysX engine for physics-based virtual surgery with force feedback. International Journal of Medical Robotics and Computer, 5:341–353.

Mackerle J, (2003). FEM and BEM parallel processing: theory and applications–a bibliography (1996-2002). Engineering Computations, 20(4): 436-484.

MacNeal RH, Harder RL, (1985). A proposed standard set of problems to test finite element accuracy. Finite Element in Analysis and Design, 1: 3-20.

MAE Center, (2006). Earthquake risk assessment using MAEviz 2.0: a tutorial. Mid-America Earthquake Center, University of Illinois at Urbana-Champaign, Urbana-Champaign, IL

MAE Center, (2010). The Maule (Chile) Earthquake of February 27, 2010: consequence assessment and case studies. Report No.10-04, Mid-America Earthquake Center , Urbana, IL.

Mahdavinejad M, Bemanian M, Abolvardi G, Elhamian SM, (2012). Analyzing the state of seismic consideration of architectural non-structural components (ANSCs) in design process (based on IBC). International Journal of Disaster Resilience in the Built Environment, 3: 133-147.

Mander JB, Priestley MJN, Park R, (1988). Theoretical stress-strain model for concrete. Journal of Structural Engineering-ASCE, 114 (8): 1804-1825

Marino EM, Nakashima M, Mosalam KM, Comparison of European and Japanese seismic design of steel building structures. Engineering Structures, 2005, 27(6): 827-840.

Martínez AS, (2001). Probability of damage due to earthquakes for buildings in Puerto Rico using the HAZUS methodology. Puerto Rico: University of Puerto Rico.

Mazars J, (1986). A description of micro-and macroscale damage of concrete structures. Engineering Fracture Mechanics, 25(5): 729-737.

Mazzoni S, McKenna F, Scott M H, Fenves GL, (2006). OpenSees command language manual. Pacific Earthquake Engineering Research Center (PEER), CA.

McKenna F, Scott MH, Fenves GL, (2009). Nonlinear finite-element analysis software architecture using object composition, Journal of Computing in Civil Engineering-ASCE, 24(1): 95-107.

McLaren TM, Myers JD, Lee JS, Tolbert NL, Hampton SD, Navarro CM, (2008). MAEviz: an earthquake risk assessment system. Proc. 16th ACM SIGSPATIAL International Conference on Advances in geographic information systems, ACM New York, 88.

Meftah SA, Tounsi A, El Abbas AB, (2007). A simplified approach for seismic calculation of a tall building braced by shear walls and thin-walled open section structures. Engineering Structures, 29 (10): 2576-2585.

Memari AM, Behr RA, Kremer PA, (2003). Seismic behavior of curtain walls containing insulating glass units. Journal of Architectural Engineering-ASCE 9: 70-85.

Mensmann J, Ropinski T, Hinrichs K, (2010). A GPU-supported lossless compression scheme for rendering time-varying volume data. Proc. 8th IEEE/EG International Conference on Volume Graphics, Eurographics Association Aire-la-Ville, Switzerland: 109–116.

Meslem A, D’Ayala D, (2012). Toward worldwide guidelines for the development of analytical vulnerability functions and fragility curves at regional level. Proc. 15th World Conference on Earthquake Engineering, Lisbon, Portugal.

Meyerhof GG, (1953). Some recent foundation research and its application to design. Structural Engineer, 31(6):151-167.

Miao QS, He XL, Zhou BZ, Liu TC, Wang ZP, Gu TZ, (2000). Experimental study on aseismic behavior of nine-story masonry building with small-size hollow concrete blocks. Journal of Building Structures, 21(4): 13-21. (苗启松, 何西令, 周炳章, 刘彤程, 王增培, 顾同曾, (2000). 小型混凝土空心砌块九层模型房屋抗震性能试验研究. 建筑结构学报, 21(4): 13-21.)

Miao ZW, Ye LP, Guan H, Lu XZ, (2011). Evaluation of modal and traditional pushover analyses in frame-shear-wall structures. Advances in Structural Engineering, 14(5): 815-836.

Michihiko S, (2008). Virtual 3D models in urban design, Virtual Geographic Environment, Hong Kong, China 2008.

Mieler MW, Stojadinovic B, Budnitz RJ, Mahin SA, Comerio MC, (2013). Toward resilient communities: a performance-based engineering framework for design and evaluation of the built environment. Pacific Earthquake Engineering Research Center (PEER), CA.

Millington I, (2007). Game physics engine development (The Morgan Kaufmann Series in Interactive 3D Technology). Morgan Kaufmann Publishers Inc., San Francisco.

Miranda E, Akkar SD, (2006). Generalized interstory drift spectrum. Journal of Structural Engineering-ASCE, 132(6): 840-852.

Miranda E, Aslani H, (2003). Probabilistic response assessment for building-specific loss estimation. PEER 2003/03, Pacific Earthquake Engineering Research Center (PEER), CA.

Miranda E, Taghavi S, (2005). Approximate floor acceleration demands in multistory buildings. I: formulation. Journal of Structural Engineering-ASCE, 131(2): 203-211.

Moehle J, Bozorgnia Y, Jayaram N, et al. (2011). Case studies of the seismic performance of tall buildings designed by alternative means. Pacific Earthquake Engineering Research Center (PEER), CA.

Moehle J, Deierlein GG, (2004). A framework methodology for performance-based earthquake engineering. Paper No. 679, Proc. 13th World Conference on Earthquake Engineering, 1–6 August, 2004, Vancouver, B.C., Canada.

Moghaddam H, Mohammadi RK, (2001). Ductility reduction factor of MDOF shear-building structures. Journal of Earthquqake Engineering, 2001, 5:425–40.

Mouroux P, Le Brun B, (2006). Presentation of RISK-UE project. Bulletin of Earthquake Engineering, 4(4): 323-339.

MSC Software, (2007). Marc 2007 User's Guide, MSC Software, Santa Ana, CA.

MSC Software, (2013). Marc 2013 User's Guide, MSC Software, Santa Ana, CA.

Mundur P, Rao Y, Yesha Y, (2006). Keyframe-based video summarization using Delaunay clustering. International Journal on Digital Libraries, 6(2): 219–232.

Murray JA, Sasani M, (2016). Near-collapse response of existing RC building under severe pulse-type ground motion using hybrid simulation. Earthquake Engineering & Structural Dynamics, 45(7): 1109-1127.

Mwafy AM, Elnashai AS, (2001). Static pushover versus dynamic collapse analysis of RC buildings. Engineering Structures, 23: 407–424.

Mylonakis G, Gazetas G, (2000). Seismic soil-structure interaction: beneficial or detrimental? Journal of Earthquake Engineering, 4(03): 277-301.

Nagayasu D, Ino F, Hagihara K, (2008). A decompression pipeline for accelerating out-of-core volume rendering of time-varying data. Computers & Graphics, 32(3): 350–362.

Nakashima M, Ogawa K, Inoue K, (2002). Generic frame model for simulation of earthquake responses of steel moment frames. Earthquake Engineering & Structural Dynamics, 31(3): 671-692.

NVIDIA (2014). “CuSP Home Page.” http://cusplibrary.github.io/ >(Feb. 6, 2015).

NVIDIA, (2012). PhysX. http://www.nvidia.cn/object/physx_new_cn.html.

NVIDIA, (2013). NVIDIA CUDA C Programming Guide (Version 5.0). Santa Clara, USA, 2013.

Okamoto T, Takenaka H, Nakamura T, Aoki T, (2012). Large-scale simulation of seismic-wave propagation of the 2011 Tohoku-Oki M9 earthquake. Proc. International Symposium on Engineering Lessons Learned from the 2011 Great East Japan Earthquake, Tokyo.

Onur T, Ventura CE, Finn WDL, (2006). A comparison of two regional seismic damage estimation methodologies. Canadian Journal of Civil Engineering, 33(11): 1401-1409.

OSG Community, (2012). OpenSceneGraph, http://www.openscenegraph.org/projects/osg/.

Özgen C, (2011). An integrated seismic loss estimation methodology: a case study in northwestern Turkey. Turkey: Middle East Technical University, 2011.

Padgett J, Desroches R, (2007). Sensitivity of seismic response and fragility to parameter uncertainty. Journal of Structural Engineering-ASCE, 133(12): 1710–8.

Padgett JE, Nielson BG, DesRoches R, (2008). Selection of optimal intensity measures in probabilistic seismic demand models of highway bridge portfolios. Earthquake Engineering & Structural Dynamics, 37(5): 711-725.

Pan P, Zhao G, Lu XZ, Deng KL, (2014). Force-displacement mixed control for collapse tests of multistory buildings using quasi-static loading systems. Earthquake Engineering & Structural Dynamics, 43(2): 287-300.

Park HC, Cho C, Lee SW, (1995). An efficient assumed strain element model with six DOF per node for geometrically non-linear shells. International Journal for Numerical Methods in Engineering, 38(24): 4101-4122.

Park YJ, Reinhorn AM, Kunnath SK, (1987). IDARC: Inelastic damage analysis of reinforced concrete frame-shear-wall structures, Technical Report NCEER-87-0008. State University of New York at Buffalo.

Paulay T, Priestley MJN, (1992). Seismic design of reinforced concrete and masonry buildings. John Wiley, New York, NY.

Peek-Asa C, Kraus JF, Bourque LB, Vimalachandra D, Yu J, Abrams J, (1998). Fatal and hospitalized injuries resulting from the 1994 Northridge Earthquake. International Journal of Epidemiology, 27: 459-465.

PEER, (2010). Guidelines for performance-based seismic design of tall buildings. Report PEER-2010/05, Pacific Earthquake Engineering Research Center (PEER), CA.

PEER, (2014). Preliminary notes and observations on the August 24, 2014, South Napa Earthquake. Report No. 2014/13, Pacific Earthquake Engineering Research Center (PEER), CA.

PEER, (2015). PEER NGA Database. Pacific Earthquake Engineering Research Center (PEER), CA, available from: http://peer.berkeley.edu/nga/.

Peterson J, Small MJ, (2012). Methodology for benefit–cost analysis of seismic codes. Natural Hazards, 63:1039-1053.

Pitilakis D, Clouteau D, (2010). Equivalent linear substructure approximation of soil-foundation-structure interaction: model presentation and validation. Bulletin of Earthquake Engineering, 8(2):257-282.

Ploeger SK, Atkinson GM, Samson C, (2010). Applying the HAZUS-MH software tool to assess seismic risk in downtown Ottawa, Canada. Natural Hazards, 53(1): 1-20.

PLW Modelworks, (2014). PLW Modelworks. http//plwmodelworks.com/.

Podio-Guidugli P, (1989). An exact derivation of the thin plate equation, Journal of Elasticity, 22(2-3): 121-133.

Ponserre S, Guha-Sapir D, Vos F, Below R, (2012). Annual disaster statistical review 2011: the numbers and trends. Centre for Research on the Epidemiology of Disasters (CRED). Brussels, Belgium.

PPD-21, (2013). Presidential Policy Directive/PPD-21: Critical infrastructure security and resilience; the White House, Washington, DC, February 12, 2013.

PPD-8, (2011). Presidential Policy Directive/PPD-8: National preparedness; the White House, Washington, DC, March 20, 2011.

Qiu J, Liu G, Wang S, Zhang X, Zhang L, Li Y, Yuan DF, Yang ZH, Zhou JH, (2010). Analysis of injuries and treatment of 3 401 inpatients in 2008 Wenchuan earthquake—based on Chinese Trauma Databank. Chinese Journal of Traumatology (English Edition) 13: 297–303.

Reinoso E, Miranda E, (2005). Estimation of floor acceleration demands in high-rise buildings during earthquakes. The Structural Design of Tall and Special Buildings, 14(2):107-130

Reitherman R, (2012). Earthquakes and engineers: an international history. American Society of Civil Engineers, Reston, VA.

Remo JW, Pinter N, (2012). Hazus-MH earthquake modeling in the central USA. Natural Hazards, 63: 1055-1081.

Ren PQ, Li Y, Guan H, Lu XZ, (2015). Progressive collapse resistance of two typical high-rise RC frame shear wall structures. Journal of Performance of Constructed Facilities-ASCE, 29(3), 04014087.

Rha C, Kang THK, Shin M, Yoon JB, (2014). Gravity and lateral load-carrying capacities of reinforced concrete flat plate systems. ACI Structural Journal, 111(4): 753-764.

Rojahn C, Sharpe RL, (1985). Earthquake damage evaluation data for California. Applied Technology Council , Redwood City, CA.

Rose A, (2004). Defining and measuring economic resilience to disasters. Disaster Prevention and Management, 13(4): 307–314.

Rots JG, Blaauwendraad J, (1989). Crack models for concrete: discrete or smeared? Fixed, multi-directional or rotating? HERON, 34(1): 1-59.

Rots JG, Nauta P, Kusters MA, Blaauwendraad J, (1985). Smeared crack approach and fracture localization in concrete, HERON, 30(1): 1-48.

Rowshandel B, Reichle M, Wills C, Cao T, Petersen M, Branum D, Davis J, (2006). Estimation of future earthquake losses in California, California Geological Survey, Menlo Park, CA.

Roy N, Shah H, Patel V, Coughlin RR, (2002). The Gujarat earthquake (2001) experience in a seismically unprepared area: community hospital medical response. Prehospital and Disaster Medicine, 17: 186-95.

Ruiz MF, Mirzaei Y, Muttoni A, (2013). Post-punching behavior of flat slabs. ACI Structural Journal, 110(5): 801-812.

Saatcioglu M, Grira M, (1999). Confinement of reinforced concrete columns with welded reinforcement grids. ACI Structural Journal, 96(1): 29-39.

Sanders J, Kandrot E, (2010). CUDA by example: An introduction to general-purpose GPU programming, Addison-Wesley, Boston, MA.

Schmidtlein MC, Shafer JM, Berry M, Cutter SL, (2011). Modeled earthquake losses and social vulnerability in Charleston, South Carolina. Applied Geography, 31(1): 269-281.

SEAOC, (1995). Performance-based seismic engineering of buildings (Vision 2000). Structural Engineers Association of California, Sacramento, CA.

Shi G, Hu FX, Shi YJ, (2016). Comparison of seismic design for steel moment frames in Europe, the United States, Japan and China, Journal of Constructional Steel Research, 127: 41-53.

Shi G, Shi YJ, Li SF, Wang YQ, (2005). Cyclic tests of semirigid end-plate connections in multi-story steel frames. Journal of Building Structures, 25(2): 74-80. (施刚,石永久,李少甫,王元清, (2005). 多层钢框架半刚性端板连接的循环荷载试验研究. 建筑结构学报, 25(2): 74-80.)

Shi G, Voyiadjis GZ, (1991). Efficient and accurate four-node quadrilateral C0 plate bending element based on assumed strain fields. International Journal for Numerical Methods in Engineering, 32(5): 1041-1055.

Shi QX, Yi WZ, (2000). Tentative studies on the aseismic behavior and investigation of collapse resistant capacity of porous masonry walls. Journal of Xi’an University of Architecture Technology: Natural Science Edition, 32(3): 271-275. (史庆轩, 易文宗, (2000). 多孔砖砌体墙片的抗震性能实验研究及抗倒塌能力分析. 西安建筑科技大学学报: 自然科学版, 32(3): 271-275.)

Shi W, (2014). Uniform collapse risk targeted seismic design methodology for reinforced concrete frame structures. Beijing: Doctoral dissertation of Tsinghua University. (施炜, (2014). RC框架结构基于一致倒塌风险的抗震设计方法研究. 北京: 清华大学博士学位论文.)

Shi W, Lu XZ, Guan H, Ye LP, (2014). Development of seismic collapse capacity spectra and parametric study. Advances in Structural Engineering, 17(9): 1241-1256.

Shi W, Lu XZ, Ye LP, (2012). Uniform-risk-targeted seismic design for collapse safety of building structures. Science China Technological Sciences, 55: 1481-1488.

Shiode N, (2000). 3D urban models recent developments in the digital modelling of urban environments in three-dimensions. GeoJournal, 52(3): 263-269.

Shome N, Cornell CABazzurro P, Carballo JE, (1998). Earthquakes, records and nonlinear responses. Earthquake Spectra, 14(3): 469-500.

Shome N, Jayaram N, Krawinkler H, Rahnama M, (2015). Loss estimation of tall buildings designed for the peer tall building initiative project. Earthquake Spectra, 31(3): 1309-1336.

Shoraka MB, Yang TY, Elwood KJ, (2013). Seismic loss estimation of non-ductile reinforced concrete buildings. Earthquake Engineering & Structural Dynamics, 42(2): 297-310.

Sinha BP, Gerstle KH, Tulin LG, (1964). Stress-strain relations for concrete under cyclic loading. ACI Journal Proceedings, 62(2): 195-210

Smelyanskiy M, Holmes D, Chhugani J, Larson A, Carmean DM, Hanson D, et al., (2009). Mapping high-fidelity volume rendering for medical imaging to CPU, GPU and many-core architectures. IEEE Transactions on Visualization and Computer Graphics, 15 (6): 1563–1570.

Smyrou E, Tasiopoulou P, Bal HE, Gazetas G, (2011). Ground motions versus geotechnical and structural damage in the February 2011 Christchurch Earthquake. Seismological Research Letters, 82(6): 882-892.

Sobhaninejad G, Hori M, Kabeyasawa T, (2011). Enhancing integrated earthquake simulation with high performance computing. Advances in Engineering Software, 42(5): 286-292.

Song SY, Ye LP, (2007). A comparison of design methods for flexure strength of RC beams between Chinese and American design codes for RC structures. Building Science, 23(7): 28-33. (宋世研, 叶列平, (2007). 中、美混凝土结构设计规范构件正截面受弯承载力的分析比较. 建筑科学, 23(7): 28-33.)

Spacone E, Filippou FC, Taucer FF, (1996). Fibre beam-column model for non-linear analysis of R/C frames I: formulation. Earthquake Engineering & Structural Dynamics, 25(7): 711-725.

Steelman JS, Hajjar JF, (2009). Influence of inelastic seismic response modeling on regional loss estimation. Engineering Structures, 31(12): 2976-2987.

Su RKL, Lam NTK, Tsang HH, (2008). Seismic drift demand and capacity of non-seismically designed concrete buildings in Hong Kong. Electronic Journal of Structural Engineering, 8: 110-121.

Sucuoǧlu H, Vallabhan CV, (1997). Behaviour of window glass panels during earthquakes. Engineering Structures, 19: 685–694.

Tada M, Fukui T, Nakashima M, Roeder CW, (2003). Comparison of strength capacity for steel building structures in the United States and Japan. Earthquake Engineering and Engineering Seismology, 2003, 4(1):37–49.

Takeda T, Sozen MA, Neilsen NN, (1970). Reinforced concrete response to simulated earthquakes. Journal of Structural Engineering Division-ASCE, 96(12): 2557-2573.

Tang BX, Lu XZ, Ye LP, Shi W, (2011). Evaluation of collapse resistance of RC frame structures for Chinese schools in Seismic Design Categories B and C. Earthquake Engineering and Engineering Vibration, 10: 369-377.

Taucer FF, Spacone E, Filippou FC, (1991). A fiber beam-column element for seismic response analysis of reinforced concrete structures. Report No. UCB/EERC-91/17, UC Berkeley, CA.

Tian CY, Zhang H, Xiao CZ, Cao JZ, (2011). Experimental research on shaking table test of Shanghai Center tower. Building Structure, 41(11): 47-52. (田春雨, 张宏, 肖从真, 曹进哲, (2011). 上海中心大厦模型振动台试验研究. 建筑结构, 41(11): 47-52.)

Tian Y, Lu X, Lu XZ, Li MK, Guan H, (2016). Quantifying the seismic resilience of two tall buildings designed using Chinese and US codes, Earthquakes and Structures, 11(6): 925-942.

Tiziano P, Roberto L, (2008). Behavior of composite CFT beam-columns based on nonlinear fiber element analysis. Proc. 2008 Composite Construction in Steel and Concrete Conference VI, 237-251.

Tothong P, Luco N, (2007). Probabilistic seismic demand analysis using advanced intensity measures. Earthquake Engineering & Structural Dynamics, 36(13): 1837-1860.

Tran C, Li B, (2012). Initial stiffness of reinforced concrete columns with moderate aspect ratios. Advances in Structural Engineering, 15(2): 265-276.

Tsai F, Lin HC, (2007). Polygon-based texture mapping for cyber city 3D building models. International Journal of Geographical Information Science, 21: 965–981

Tsai KC, Hsiao PC, Wang KJ, Weng YT, Lin ML, Lin KC, Chen CH, Lai JW, Lin SL, (2008). Pseudo-dynamic tests of a full-scale CFT/BRB frame—Part I: specimen design, experiment and analysis. Earthquake Engineering & Structural Dynamics, 37(7): 1081-1098.

UBC, (1997). Uniform building code. CA.

UNDP (2015), UNDP announces ‘5-10-50’ – new global programme in support of disaster resilience; United Nations Development Programme, 17 March, 2015.
http://www.undp.org/content/undp/en/home/presscenter/pressreleases/2015/03/17/undp-announces-5-10-50-new-global-programme-in-support-of-disaster-resilience.html [accessed 29 December 2015].

University of Siegen, (2012). osgCompute documentation.
http://www.basementmaik.com/doc/osgcompute/html/index.html.

Vamvatsikos D, Cornell CA, (2002). Incremental dynamic analysis. Earthquake Engineering & Structure Dynamics, 31(3): 491-514.

Vamvatsikos D, Cornell CA, (2005). Developing efficient scalar and vector intensity measures for IDA capacity estimation by incorporating elastic spectral shape information. Earthquake Engineering & Structural Dynamics, 34(13): 1573-1600.

Varma AH, Ricles JM, Sause R, (2002). Seismic behavior and modeling of high-strength composite concrete-filled steel tube (CFT) beam-columns. Journal of Constructional Steel Research, 58(5-8): 725-758.

Villaverde R, (2007). Methods to assess the seismic collapse capacity of building structures: state of the art. Journal of Structural Engineering-ASCE, 133: 57–66.

Wahba G, (1990). Spline models for observational data, society for industrial and applied mathematics. Philadelphia, Pennsylvania.

Wang DS, Zhou JL, Jiang WW, Wang J, Jiang XF, (2012). Research on seismic shear gravity ratio limit for super high-rise buildings higher than 500m. Building Structure, 42(5): 24-27. (汪大绥,周建龙,姜文伟,王建,江晓峰, (2012). 超高层结构地震剪力系数限值研究. 建筑结构, 42(5): 24-27.)

Wang J, Wang WD, Zhang PP, (2011). Dynamic time history analyses of concrete-filled steel tubular frames based on nonlinear fiber beam-column element. Earthquake Resistant Engineering and Retrofitting, 33(2): 9-15. (王军, 王文达, 张鹏鹏, (2011). 基于非线性纤维梁柱单元的钢管混凝土框架动力时程分析. 工程抗震与加固改造, 33(2): 9-15.)

Wang MF, Zhou XY, (2002). A practical method for nonlinear seismic responses of RC frame wall structure. China Civil Engineering Journal, 35(6):32-38. (汪梦甫, 周锡元, (2002). 钢筋混凝土框架—剪力墙结构非线性地震反应实用分析方法的研究. 土木工程学报, 35(6):32-38.).

Wang XL, Lu XZ, Ye LP, (2007). Numerical simulation for the hysteresis behavior of RC columns under cycle loads. Engineering Mechanics, 24(12): 76-81. (汪训流, 陆新征, 叶列平, (2007). 往复荷载下钢筋混凝土柱受力性能的数值模拟. 工程力学, 24(12): 76-81.)

Wang YY, Gao MT, Ye LP, Lu XZ, Qian JR, (2010). Research strategy on the building seismic design method that is aimed to control the collapse possibility under strong and mega earthquakes, Proc. 8th National Conference on Earthquake Engineering, Dec. 2010, Chongqing: 291-297. (王亚勇, 高孟潭, 叶列平, 陆新征, 钱稼茹, (2010). 基于大震和特大震下倒塌率目标的建筑抗震设计方法研究方案, 第八届全国地震工程学术会议论文集, 2010. 12, 重庆: 291~297.)

Wang ZG, Xue GY, Gao BL, Zhang JT, (2003). Experimental research on the seismic behavior of confined shale brick masonry walls. Journal of Southeast University: Natural Science Edition, 33(5): 638-642. (王正刚, 薛国亚, 高本立, 张津涛, (2003). 约束页岩砖砌体墙抗震性能实验研究. 东南大学学报: 自然科学版, 33(5): 638-642.)

Wang ZG, Zha ZX, (2002). Experimental study on antiseismic behavior of a full scale building of 6-story porous brick and small-size hollow concrete block structure with constructional column-beam system. Earthquake Engineering and Engineering Vibration, 2002, 22(4): 90-96. (王宗纲, 查支祥, (2002). 构造柱-圈梁体系外多孔墙内混凝土小型空心砌块六层足尺房屋抗震性能实验研究. 地震工程与工程振动, 2002, 22(4): 90-96.)

Waters TP. (1995). Finite element model updating using measured frequency response functions. Bristol: Doctoral dissertation of University of Bristol.

Weng XP, (2010). Numerical simulation analysis and experimental study on seismic behavior of cavity wall masonry. Hangzhou: Master dissertation of Zhejiang University. (翁小平, (2010). 空斗墙砌体数值模拟分析与抗震性能试验研究. 杭州: 浙江大学硕士学位论文.)

Wijerathne MLL, Hori M, Kabeyazawa T, Ichimura T, (2012). Strengthening of parallel computation performance of integrated earthquake simulation. Journal of Computing in Civil Engineering, 27(5): 570-573.

Wikipedia Contributors, (2015). List of tallest buildings in Christchurch, Wikipedia, The Free Encyclopedia; 10 August 2015, 23:55 UTC.
https://en.wikipedia.org/w/index.php?title=List_of_tallest_buildings_in_Christchurch&oldid=675499611 [accessed 23 August 2015]

Williams SS, (2014). Modernizing the system hierarchy for tall buildings: a data-driven approach to system characterization. Notre Dame: Master dissertation of the University of Notre Dame.

Wu H, Zhao SC, Xu H, Zhang PB, Wu G, (2012). Damage characteristic analysis of transverse wall of brick concrete masonry school buildings with different structural measures. Building Structure, 42(S1): 226-230. (吴昊, 赵世春, 许浒, 张蓬勃, 吴刚, (2012). 砖混教学楼横墙不同构造条件下破坏特点分析. 建筑结构, 42(S1): 226-230.)

Wu WB, (2012). Study on seismic performance of autoclaved fly ash bricks. Harbin: Master dissertation of Institute of Engineering Mechanics, China Earthquake Administration. (吴文博, (2012). 蒸压砖结构抗震性能研究. 哈尔滨: 中国地震局工程力学研究所硕士学位论文.)

Xian W, Takayuki A, (2011). Multi-GPU performance of incompressible flow computation by lattice Boltzmann method on GPU cluster. Parallel Computing, 37(9): 521–535.

Xiao J, Zhuang Y, Yang T, Wu F, (2006). An efficient keyframe extraction from motion capture data. Advances in Computer Graphics, 4035: 494–501.

Xiao JZ, Huang JD, Yao Y, (2012). Test on seismic behavior of recycled concrete block walls. Journal of Building Structures, 42(4): 100-109. (肖建庄, 黄江德, 姚燕, (2012). 再生混凝土砌块墙体抗震性能试验研究. 建筑结构学报, 42(4): 100-109.)

Xie LL, Lu XZ, Guan H, Lu X, (2015). Experimental study and numerical model calibration for earthquake-induced collapse of RC frames with emphasis on key columns, joints and overall structure. Journal of Earthquake Engineering, 19(8): 1320-1344.

Xiong C, Lu XZ, Guan H, Xu Z, (2016a). A nonlinear computational model for regional seismic simulation of tall buildings. Bulletin of Earthquake Engineering, 14(4): 1047-1069.

Xiong C, Lu XZ, Hori M, Guan H, Xu Z, (2015). Building seismic response and visualization using 3D urban polygonal modeling. Automation in Construction, 55: 25–34.

Xiong C, Lu XZ, Lin XC, Xu Z, Ye LP, (2016b). Parameter determination and damage assessment for THA-based regional seismic damage prediction of multi-story buildings, Journal of Earthquake Engineering, DOI: 10.1080/13632469.2016.1160009.

Xu F, Chen XP, Ren AZ, Lu XZ, (2008). Earthquake disaster simulation for an urban area, with GIS, CAD, FEA and VR integration, Proc. 12th Int. Conf. on Computing in Civil and Building Engineering, Oct. 2008, Beijing, CDROM.

Xu Y, Long YQ, (1993). Quadrilateral membrane element with vertex rotational freedom from generalized compatible condition. Engineering Mechanics, 10(3): 27-36. (须寅, 龙驭球, (1993). 采用广义协调条件构造具有旋转自由度的四边形膜元. 工程力学, 10(3): 27-36.)

Xu Z, Lu XZ, Guan H, Han B, Ren AZ, (2014a). Seismic damage simulation in urban areas based on a high-fidelity structural model and a physics engine. Natural Hazards, 71(3): 1679-1693.

Xu Z, Lu XZ, Guan H, Lu X, Ren AZ, (2013a). Progressive-collapse simulation and critical region identification of a stone arch bridge. Journal of Performance of Constructed Facilities-ASCE, 27 (1): 43-52.

Xu Z, Lu XZ, Guan H, Ren AZ, (2013b). Physics engine-driven visualization of deactivated elements and its application in bridge collapse simulation. Automation in Construction, 35: 471–481.

Xu Z, Lu XZ, Guan H, Ren AZ, (2014b). High-speed visualization of time-varying data in large-scale structural dynamic analyses with a GPU, Automation in Construction, 42: 90-99.

Xu Z, Lu XZ, Guan H, Tian Y, Ren AZ, (2016a). Simulation of earthquake-induced hazards of falling exterior non-structural components and its application to emergency shelter design. Natural Hazards, 80(2): 935-950.

Xu Z, Lu XZ, Law KH, (2016b). A computational framework for regional seismic simulation of buildings with multiple fidelity models. Advances in Engineering Software, 99: 100-110.

Yamashita T, Kajiwara K, Hori M, (2011). Petascale computation for earthquake engineering. Computing in Science & Engineering, 13(4): 44-49.

Yang DJ, Gao SF, Sun JB, Wang SX, Cheng QX, (2000). Experimental study on aseismic behavior of concrete block walls with construction-core column system. Journal of Building Structures, 21(4): 22-27. (杨德健, 高水孚, 孙锦镖, 王书祥, 成全喜, (2000). 构造桩-芯柱体系混凝土砌块墙体抗震性能试验研究. 建筑结构学报, 21(4): 22-27.)

Yang SP, Lin XG, (2005). Key frame extraction using unsupervised clustering based on a statistical model. Tsinghua Science & Technology, 10(2): 169–173.

Yang TY, Atkinson JC, Tobber L, (2015). Detailed seismic performance assessment of high-value contents laboratory facility. Earthquake Spectra, 31(4): 2117-2135.

Yang TY, Hurtato G, Moehle JP, (2010). Seismic modeling and behavior of gravity frames in high-rise building. Proc. 9th National Conference on Earthquake Engineering, Toronto, Canada.

Yang TY, Moehle J, Stojadinovic B, Der Kiureghian A, (2009). Seismic performance evaluation of facilities: methodology and implementation. Journal of Structural Engineering-ASCE, 135(10): 1146-1154.

Yang TY, Moehle JP, Bozorgnia Y, Zareian F, Wallace JW, (2012). Performance assessment of tall concrete core-wall building designed using two alternative approaches. Earthquake Engineering & Structural Dynamics, 41(11):1515-1531.

Yang TY, Murphy M, (2015). Detailed performance evaluation of steel seismic force resisting systems for low-rise buildings in Canada. Earthquake Spectra, 31(4):1969–1990.

Yang WJ, Chen LQ, Zhu XQ, (2008). Experimental study on seismic behavior of concrete perforated brick walls. Engineering Mechanics, 25(9): 126-133. (杨伟军, 陈利群, 祝晓庆, (2008). 混凝土多孔砖墙体抗震性能试验研究. 工程力学, 25(9): 126-133.)

Yang XQ, Fu XY, Huang YJ, (2011). Dynamic elasto-plastic analysis of the Shenzhen Ping’an Financial Center Tower. Journal of Building Structures, 32(7): 40-49. (杨先桥, 傅学怡, 黄用军, (2011). 深圳平安金融中心塔楼动力弹塑性分析. 建筑结构学报, 32(7): 40-49.)

Yang YX, (2008). Experimental study on seismic performance of prestressed autoclaved flyash-lime soild brick walls. Chongqing: Master dissertation of Chongqing University. (杨元秀, (2008). 预应力蒸压粉煤灰实心砖墙抗震性能试验研究. 重庆: 重庆大学硕士学位论文.)

Ye LP, Lu XZ, Li Y, (2010). Design objectives and collapse prevention for building structures in mega-earthquake. Earthquake Engineering and Engineering Vibration, 9(2): 189-200.

Ye LP, Ma QL, Miao ZW, Guan H, Zhuge Y, (2013). Numerical and comparative study of earthquake intensity indices in seismic analysis. The Structural Design of Tall and Special Buildings, 22(4): 362-381.

Ye YH, Li LQ, Sun WM, Gu Z, Cheng JG, (2004). Experimental study on seismic behaviors of hollow block wall filled with foaming concrete. Earthquake Engineering and Engineering Vibration, 24(5): 154-158. (叶燕华, 李利群, 孙伟民, 顾忠, 成金高, (2004). 内注泡沫混凝土空心砌块墙体抗震性能的试验研究. 地震工程与工程振动, 24(5): 154-158.)

Yi WJ, He QF, Xiao Y, Kunnath SK, (2008). Experimental study on progressive collapse-resistant behavior of reinforced concrete frame structures. ACI Structural Journal, 105(4):443-439.

Yin ZQ, Zhao Z, Yang SW, (2003). Relation between vulnerability of buildings and earthquake acceleration spectra (I). Journal of Earthquake Engineering and Engineering Vibration, 23(4), 195-200. (尹之潜, 赵直, 杨淑文, (2003). 建筑物易损性和地震损失与地震加速度谱值的关系(). 地震工程与工程振动, 23(4), 195-200.)

Yin ZQ, Yang SW, (2004). Earthquake loss analysis and fortification standards. Beijing: Seismological Press. (尹之潜, 杨淑文, (2004). 地震损失分析与设防标准. 北京: 地震出版社.)

You S, Hu JH, Neumann U, Fox P, (2003). Urban site modeling from LiDAR, Computational science and its applications—ICCSA 2003, Springer Berlin Heidelberg.

Yu JG, (2003). Study on lateral bearing capacity and lateral stiffness of prestressed brick walls. Chongqing: Master dissertation of Chongqing University. (于建刚, (2003). 集中式预应力砖墙的抗侧强度及抗侧刚度计算方法的研究. 重庆: 重庆大学硕士学位论文.)

Yuan YF, (2008). Loss assessment of Wenchuan Earthquake. Journal of Earthquake Engineering and Engineering Vibration, 28(5): 10-19. (袁一凡, (2008). 四川汶川8.0级地震损失评估. 地震工程与工程振动, 28(5): 10-19.).

Zareian F, Krawinkler H, (2007). Assessment of probability of collapse and design for collapse safety. Earthquake Engineering & Structural Dynamics, 36(13): 1901–1914.

Zatar W, Mutsuyoshi H, (2002). Residual displacements of concrete bridge piers subjected to near field earthquakes. ACI Structural Journal, 99(6):740~749.

Zeng X, Lu XZ, Yang T, Xu Z, (2016). Application of the FEMA-P58 methodology for regional earthquake loss prediction, Natural Hazards, 83(1): 177-192.

Zhai CH, Xie LL, (2007). Study on overstrength of RC frame structures. Journal of Building Structures, 28(1): 101-106. (翟长海, 谢礼立, (2007). 钢筋混凝土RC框架结构超强研究. 建筑结构学报, 28(1): 101-106.)

Zhang H, (2005). Experimental study on seismic and crack-resistance behavior of composite concrete block masonry walls. Nanjing: Master dissertation of Nanjing University of Technology. (张会, (2005). 复合混凝土小型砌块砌体抗裂与抗震性能试验研究. 南京: 南京工业大学硕士学位论文.)

Zhang H, (2007a). Experimental study on seismic behavior of load bearing walls with opening built by fly ash-autoclaved bricks and fly ash block walls restricted by constructional columns and top-beam. Yangzhou: Master dissertation of Yangzhou University. (张宏, (2007). 带洞口约束梁柱粉煤灰蒸压砖承重墙、粉煤灰砌块自承重墙抗震性能的试验研究. 扬州: 扬州大学硕士学位论文.)

Zhang HM, (2007b). Study on the performance-based seismic design method for shear wall structures. Shanghai: Doctoral dissertation of Tongji University. (章红梅, (2007). 剪力墙结构基于性态的抗震设计方法研究. 上海: 同济大学博士学位论文.)

Zhang J, Cao WL, Yu C, Dong HY, (2014). Shake table test of reinforced concrete wall structure with concealed bracings. Proc. ICE-Structures and Buildings, 167(10): 598-609.

Zhang LH, (2009). Analysis on overstrength factors of reinforced concrete frame structures. Chongqing: Master dissertation of Chongqing University. (张连河, (2009). 钢筋混凝土RC框架结构超强系数分析. 重庆: 重庆大学硕士学位论文.)

Zhang W, (2007c). The finite element analysis of experimental results of and research to shear capacities of CFRP strengthened masonry. Wuhan: Doctoral dissertation of Wuhan University of Technology. (张维, (2007). CFRP 加固砌体试验研究的有限元分析及受剪承载力研究. 武汉: 武汉理工大学博士学位论文.)

Zhang WZ, Bahram MS, (1999). Comparison between ACI and AISC for concrete-filled tubular columns. Journal of Structural Engineering-ASCE, 125(11): 1213-23.

Zhang YQ, (2014). Seismic damage analyses of masonry structure retrofitted by prefabricated reinforced concrete panels. Harbin: Master dissertation of Institute of Engineering Mechanics, China Earthquake Administration. (张永群, (2014). 预制钢筋混凝土墙板加固砌体结构的抗震性能研究. 哈尔滨: 中国地震局工程力学研究所硕士学位论文.)

Zhang Z, (2010). Experimental research and theoretical analysis on seismic behavior of masonry strengthened by SGFRP. Wuhan: Doctoral dissertation of Wuhan University of Technology. (张智, (2010). 喷射GFRP加固砌体结构抗震性能试验研究与理论分析. 武汉理工大学博士学位论文.)

Zhao CW, Shang YM, Zhou K, Qiao H, (2010). Experimental study on the seismic behavior of autoclaved fly ash brick walls. Journal of Shenyang Jianzhu University: Natural Science, 25(1): 57-61. (赵成文, 尚义明, 周康, 乔辉, (2010). 蒸压粉煤灰砖墙片抗震性能试验. 沈阳建筑大学学报: 自然科学版, 25(1): 57-61.)

Zhao FL, (2008). Research on overstrength factors of reinforced- concrete frame structures. Xi’an: Master dissertation of Xi’an University of Architecture Technology. (赵风雷, (2008). 钢筋混凝土RC框架结构超强系数的研究. 西安: 西安建筑科技大学硕士学位论文.)

Zhao ZZ, (1993).  Model test and nonlinear analysis of multi-story large-bay residential structure system with less internal longitudinal walls. Beijing: Master dissertation of Tsinghua University. (赵作周, (1993). 多层大开间少内纵墙住宅结构模型试验研究及弹塑性分析. 北京: 清华大学硕士学位论文.)

Zheng GB, (2005). Achieving high performance on extremely large parallel machines: performance prediction and load balancing. Technical Report of University of Illinois at Urbana-Champaign, No. UIUCDCS-R-2005-2559. Urbana, IL.

Zheng NN, (2010). Research on seismic behavior of masonry structures with fabricated tie-columns. Chongqing: Doctoral dissertation of Chongqing University. (郑妮娜, (2010). 装配式构造柱约束砌体结构抗震性能研究. 重庆: 重庆大学博士学位论文.)

Zheng Q, (2012). The experimental study of the model of anti-seismic performance and shear-carrying capacity of FRP intensified masonry wall. Shenyang: Master dissertation of Shenyang Jianzhu University. (郑强, (2012). FRP 加固砌体墙抗震性能及抗剪承载力模型研究. 沈阳: 沈阳建筑大学硕士学位论文.)

Zhou BZ, Zheng W, Guan QX, Liu TC, He XL, Wang ZP, (2000). Experimental study on aseismic behavior of six-story masonry building with small-size hollow concrete blocks. Journal of Building Structures, 21(4): 2-12. (周炳章, 郑伟, 关启勋, 刘彤程, 何西令, 王增培, (2000). 小型混凝土空心砌块六层模型房屋抗震性能试验研究. 建筑结构学报, 21(4): 2-12.)

Zhou HY, (2004). Experimental study on seismic behavior of small concrete hollow block walls restricted by cinstructional columns. Beijing: Doctoral dissertation of Beijing University of Technology. (周宏宇, (2004). 带构造柱混凝土小型空心砌块承重墙抗震性能的试验研究. 北京: 北京工业大学博士学位论文.)

Zou X, Zhou DY, (2005). Experimental analysis of 3-story RC frame structures under cyclic load reversals. Sichuan Building Science, 31(2): 7-11. (邹翾, 周德源, (2005). 3层钢筋混凝土框架结构反复加载试验分析. 四川建筑科学研究, 31(2): 7-11.)

Zhou Y, Shi WX, Han RL, (2012). Vibration test and analysis of the fundamental period of multi-storey mosonry structures with large-bay. Engineering Mechanics, 29(11): 197-204. (周洋, 施卫星, 韩瑞龙, (2012). 多层大开间砌体结构的基本周期实测与分析. 工程力学, 29(11): 197-204.)

Zhuang Y, Rui Y, Huang TS, Mehrotra S, (1998). Adaptive key frame extraction using unsupervised clustering, Proc., International Conference on Image Processing, IEEE Computer Society, Washington, DC, USA: 866–870.

Preview Pages of this Book

Full Text PDF of this Book

Introduction
Research
Application
Teaching
Publications
Download
Issues
Others



Our Lab

Collapse Prevention Committee
